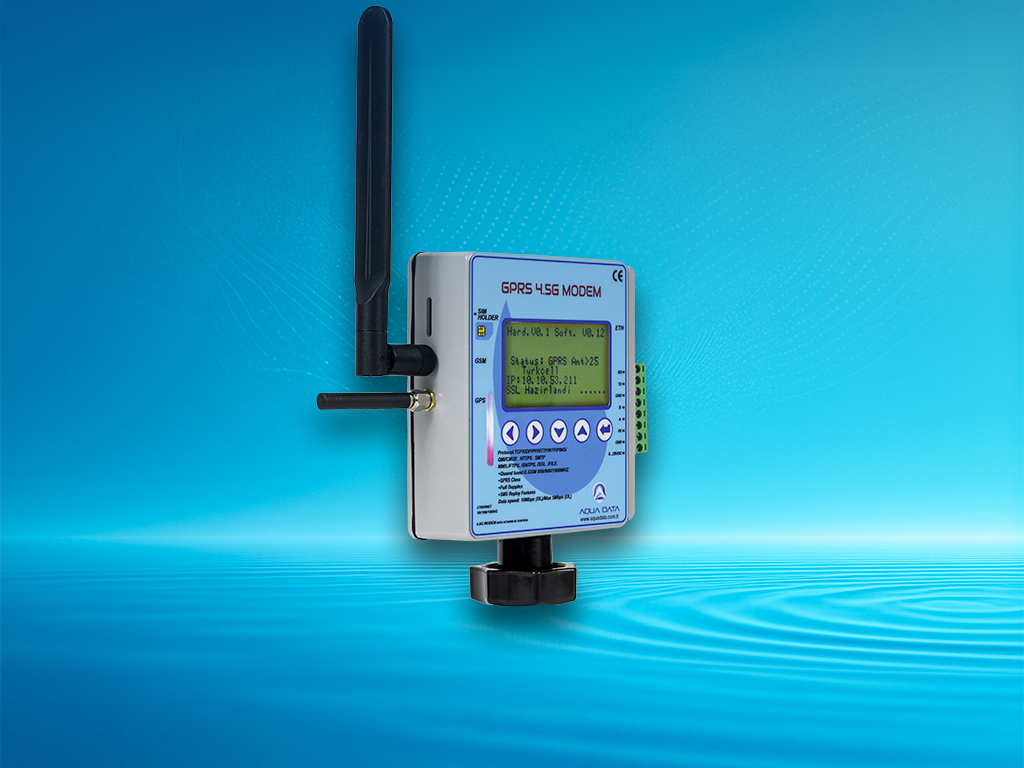

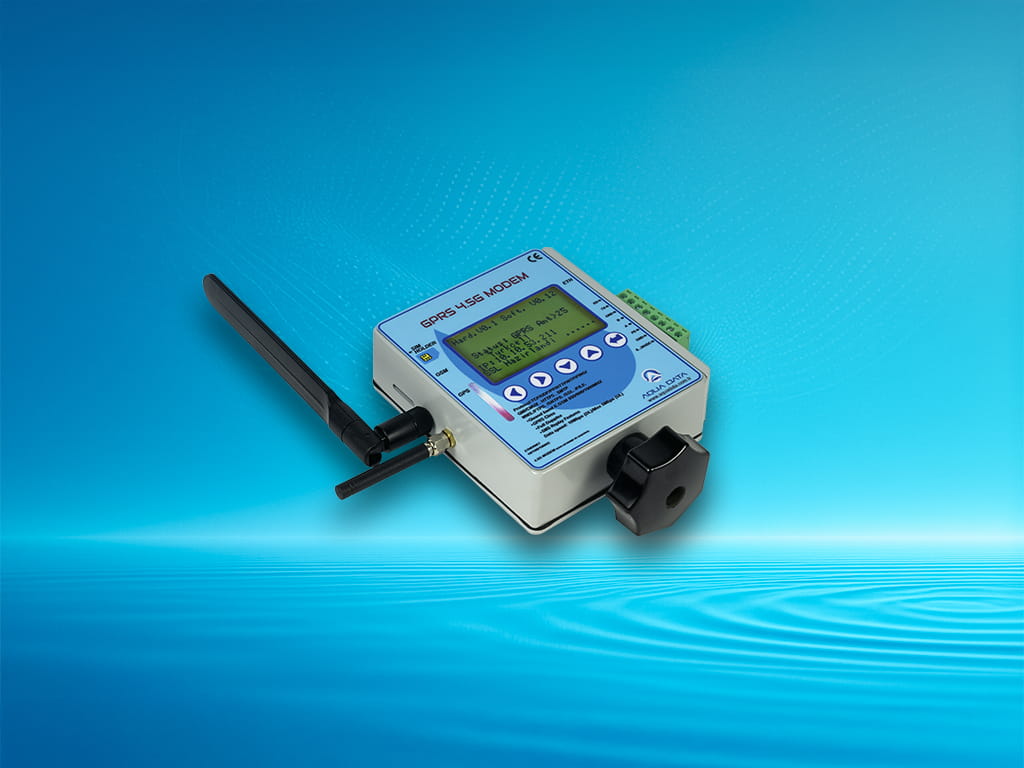

4.5G DATA MODEM GSM / GPRS


  • Compatible with every GSM line in Turkey.
  • AQUADATA and AKIM brand full with all loggers easy going.
  • TXT Message sending and receiving, sending data and alarm
    to the selected e-mail address when server is active.
  • GSM/GPRS communication
  • Automatic reset function at necessary conditions
  • TCP data transmission to the entered address
  • Automatic reconnection when identified APN connection is cut of
  • Replying data call feature

Many parameters can be seen, keypad on All adjustments
and changes transactions can be made.


  • IP number
  • Shooting level
  • PC connection status
  • IMEI number
  • Numbers to send alarm
  • Operator name etc.



Power Supply8 ... 28Volt DC
Peak 1,5A
Power Consumption (Stand By)35mA
Power Consumption (Power Off)62uA
Output Power

Class 4 (W) @ 850 / 900 Mhz
Class 1 (W) @ 1800 / 1900 Mhz

SensitivityClass 4 (W) @ 850 / 900 Mhz
Class 1 (W) @ 1800 / 1900 Mhz
Temperature Range-40 / +80 °C (operational)
-40 / +85 °C (storage temperature)
CompatibilityCompatible with 2G and 4.5G
Protection ClassIP: 65



Brochures

Data Modem (GPR - 4.5G) - v1.1 Current
pdf
13.04.2023
