FLOOD WARNING MONITORING SYSTEM

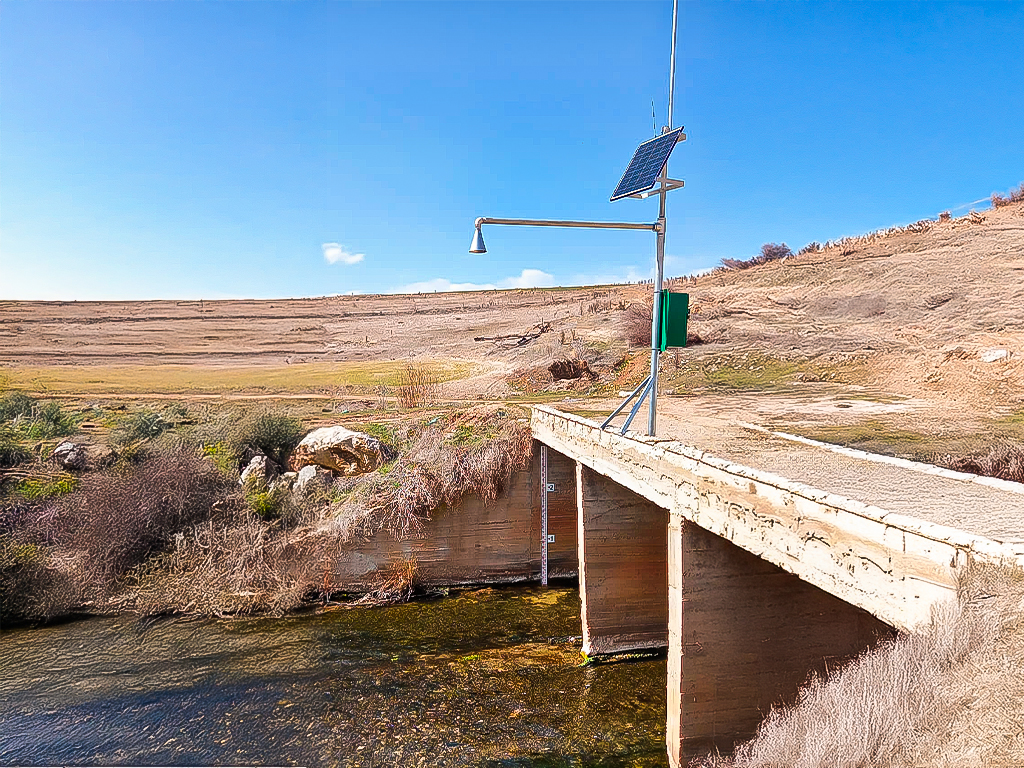

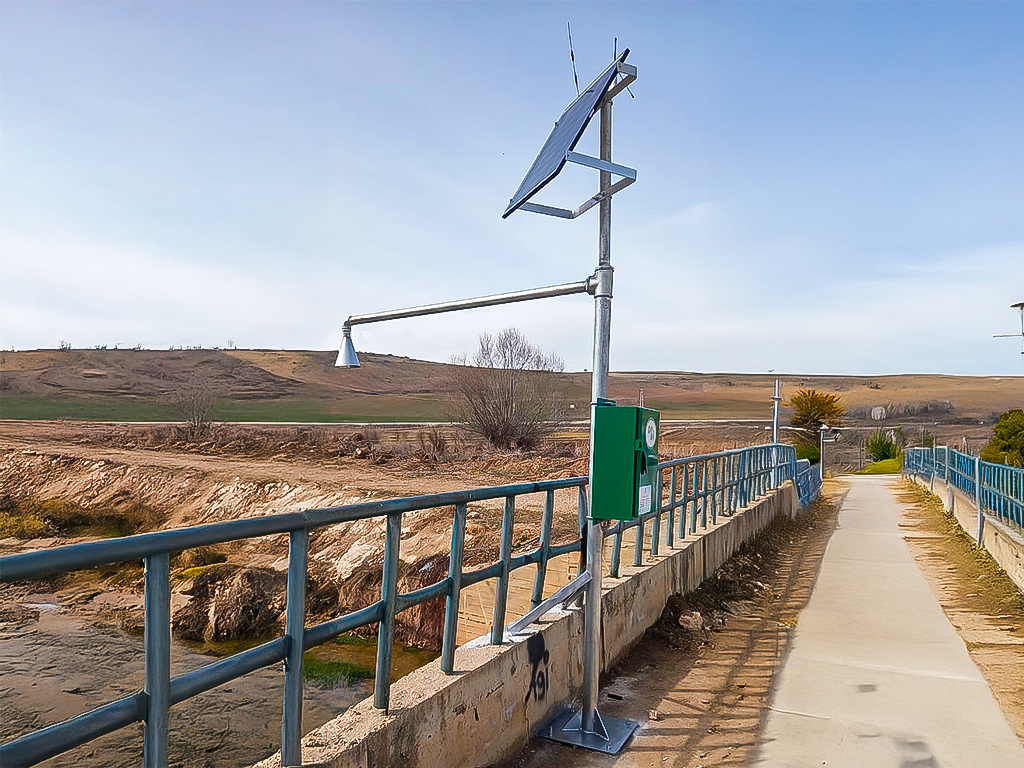

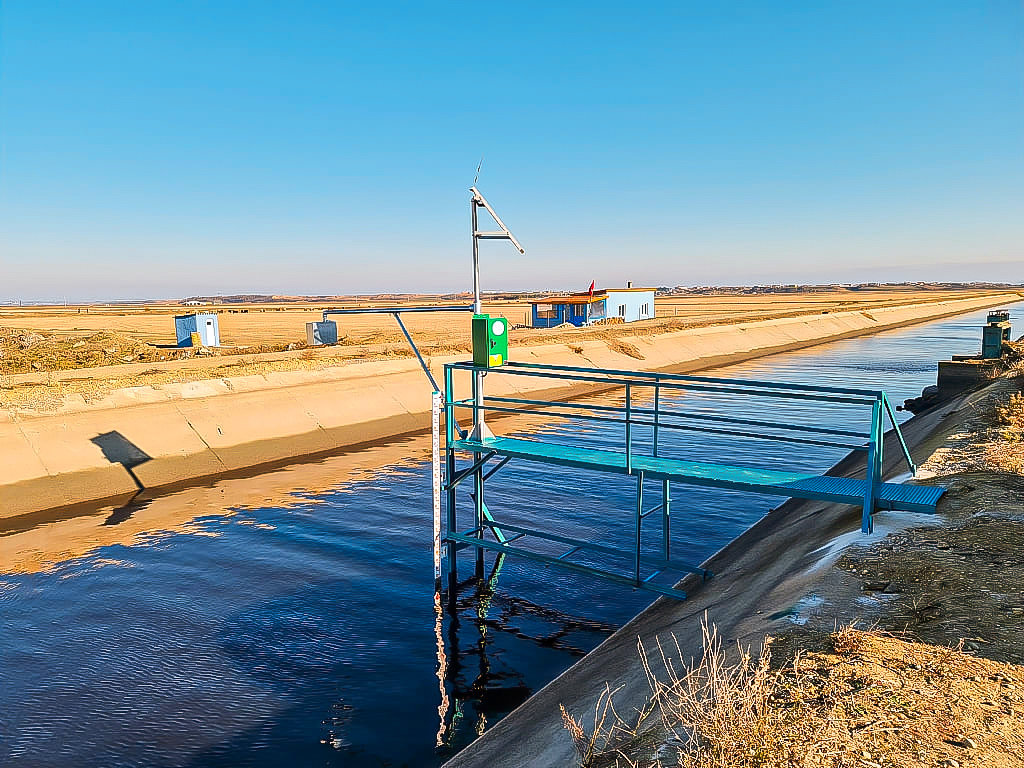

• The CMS (Current Monitoring Station) installed in the critical area
  measures the instantaneous water level with the Radar Level
  Measurement Sensor.

• The values measured by the Level Measurement Sensors are recorded
  in the Data Logger Unit.

• Graded level alarms set by authorized personnel are generated.

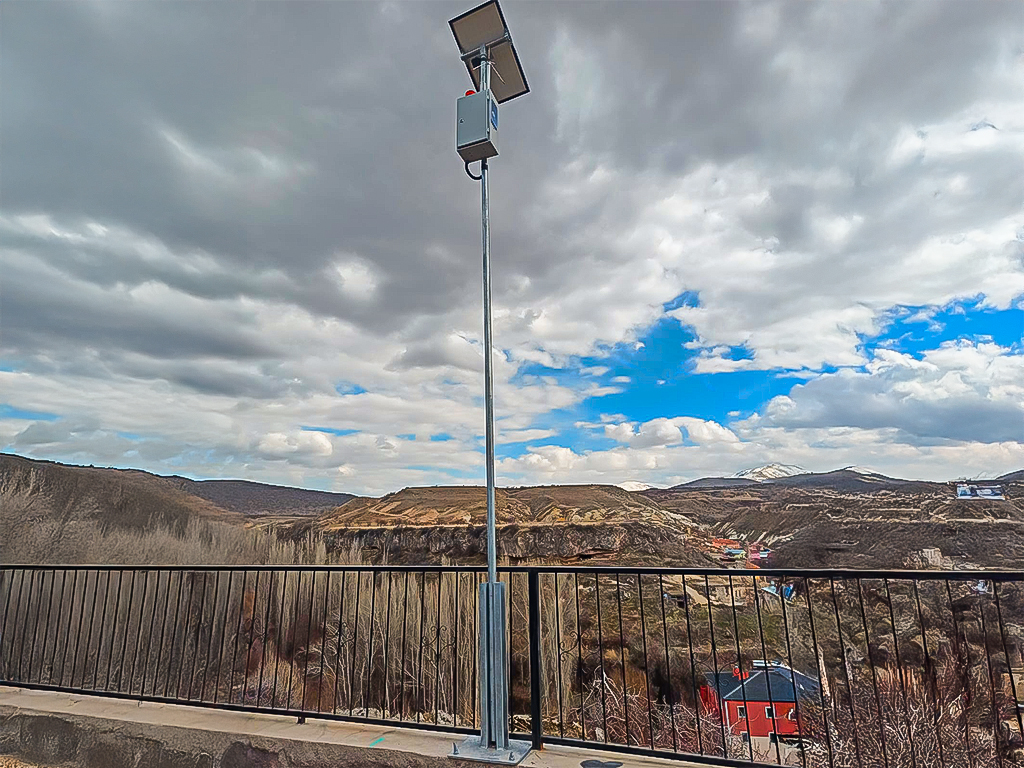

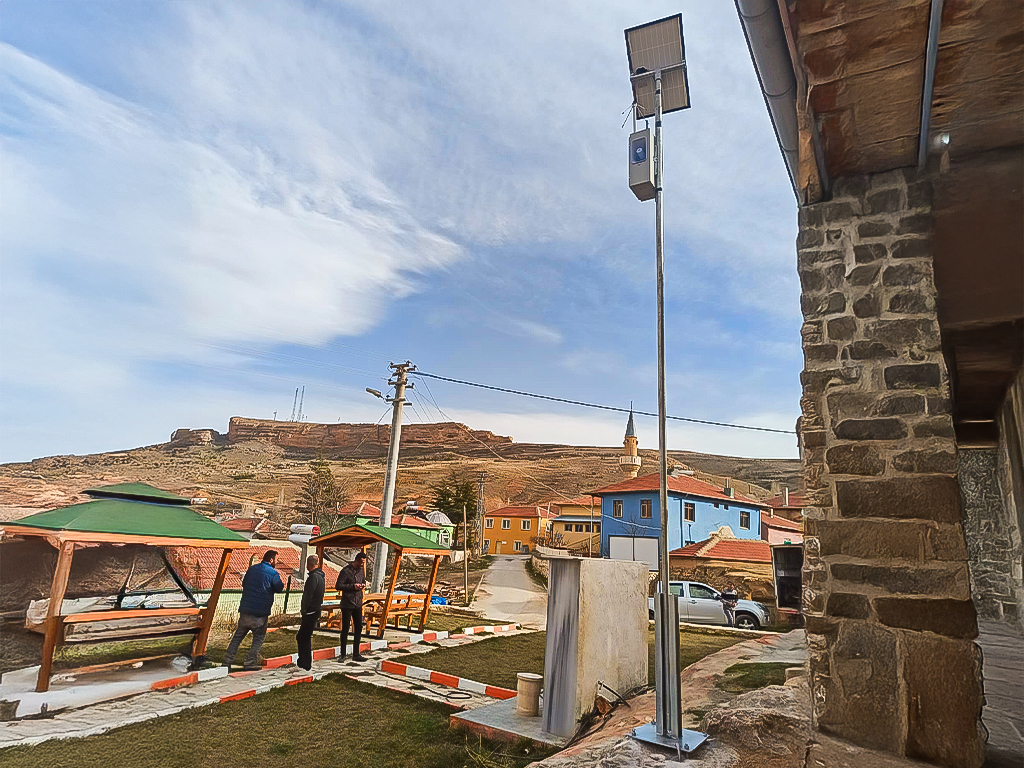

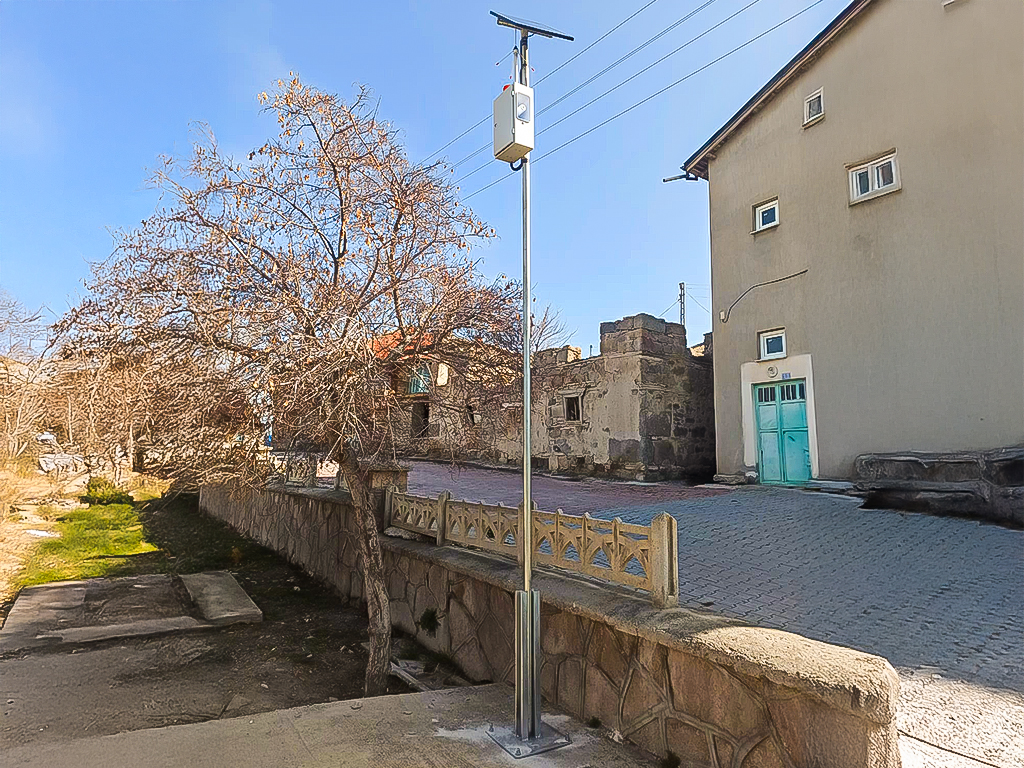

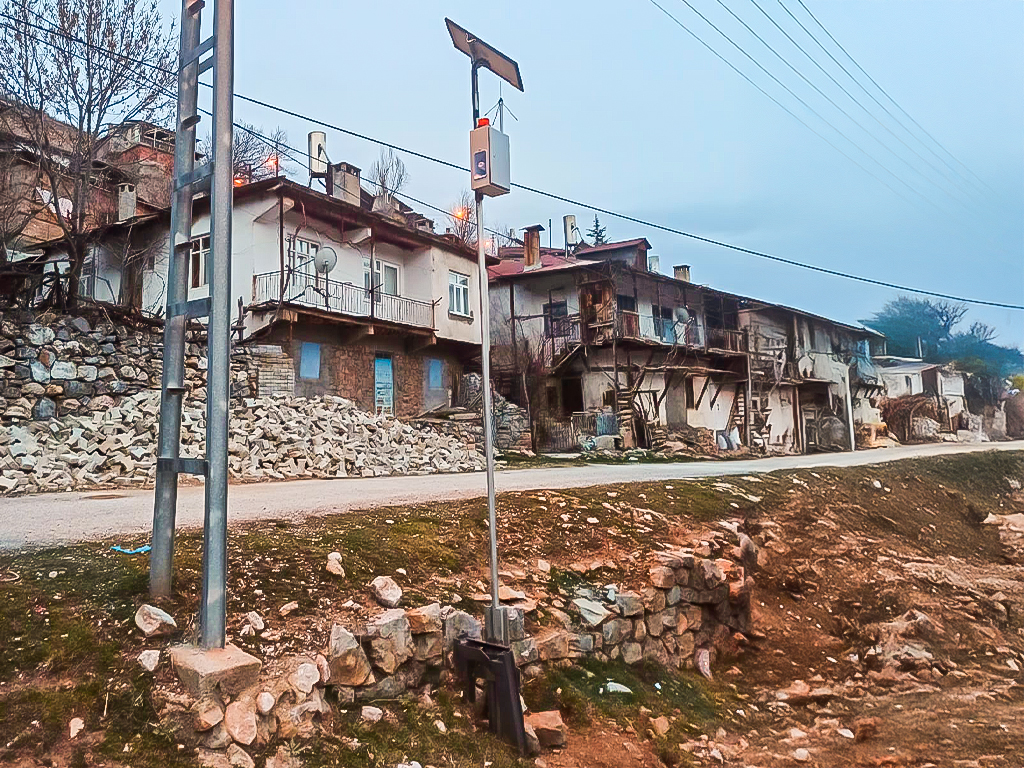

• Thanks to the modem connected to the data logger unit, when the
  water level reaches the specified level alarm, it sends a signal to the
  specified region and gives an audible and light warning to the people
  of the region.

• When the water level reaches the alarm point, it sends SMS and App
  notification to authorized personnel.

COMPONENTS

Antenna

2 MP/4 MP/8 MP Camera

100W/150W Solar Panel

Level Measurement Sensor

AQUADATA Device Dashboard

AQUADATA DEVICE DASHBOARD CONTENTS

12V 80Ah Gel Battery

Solar Charge Controller

PRO-LOG (Industrial Panel PC)

• 2×255 Channels
• 1 × USB 3.0 Port
• 1 × USB 2.0 Port
• 1 × Type-C Port
• 1 × RJ45 Ethernet Port
• 1 × HDMI Port
• 2 × RS485 Ports (supports Modbus RTU)
• 6 × Digital Inputs
• 4 × Digital / 4–20 mA Outputs
• 5 × Analog / 4–20 mA Inputs
• 1 × Battery Voltage Monitoring Input
• 1 × RS232 Port (supports Modbus RTU)
• 1 × WiFi Module
• 1 × Bluetooth 5.0
• 1 × External SD Card Slot
• 1 × 3.5 mm Speaker Output
• 3 × Antenna Ports
• 1 × RJ9H Port
• 1 × SIM Card Slot
• 5” Touchscreen LCD Display (7” optional)

• Easy access via both smartphones and desktop computers
• Fully compatible with iOS and Android platforms
• Seamless integration with government systems like DSİ GÖZBİS
• Full support for SCADA systems using RS485 Modbus RTU protocol
• Clean and user-friendly interface design
