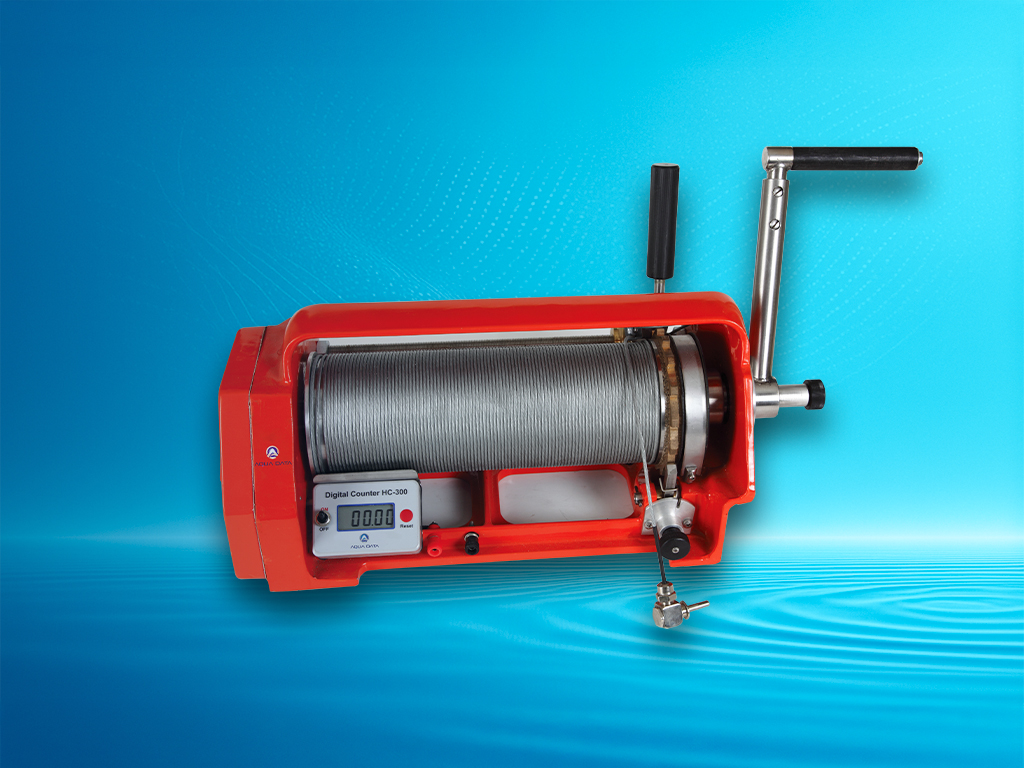

WATER GAUGING WINCH (HC-300)

• HC-300 The Water Gauging Winch is a hand operated winch capable
  of handling Gauging Weights up 50 Kg (110 1b)
• The Water Gauging Winch is a very compact unit and has been designed
  for ease of operation and maintenance in the field. The extensive use of
  aluminium has kept the weight to a minimum, such it can be handled by
  one person.

Special features inclue;

• Provision for easily fitting the Amergraph Cable in the field.
• Sliprings housed within the protective end cover.



STRUCTURAL FEATURES

• Light Constuction – Cast Aluminium Frames and Drums
• Portable
• Automatic Weston Brake-safety brakes which lock the winch if the
  handle is released.
• Free Fall Drag Brake-allows quick lowering of weights down to water surface.
• Depth counter housed within the frame-protected from external damage.
• Silver Plated Sliprings- conducts signal from sounding drum to the current
  meter counter.
• Single Layer of Signal Cable on Drum-Prevents damage of internal conductor
  and premature replacement.
• Single extendible handle.

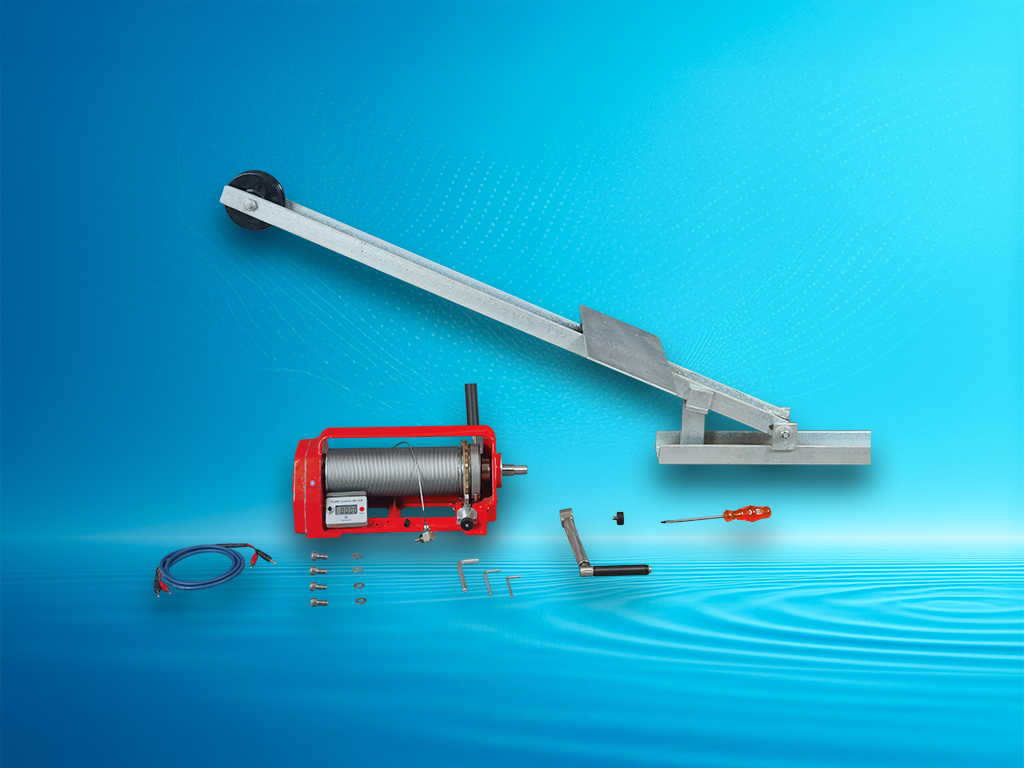

ACCESSORIES (OPTIONAL)

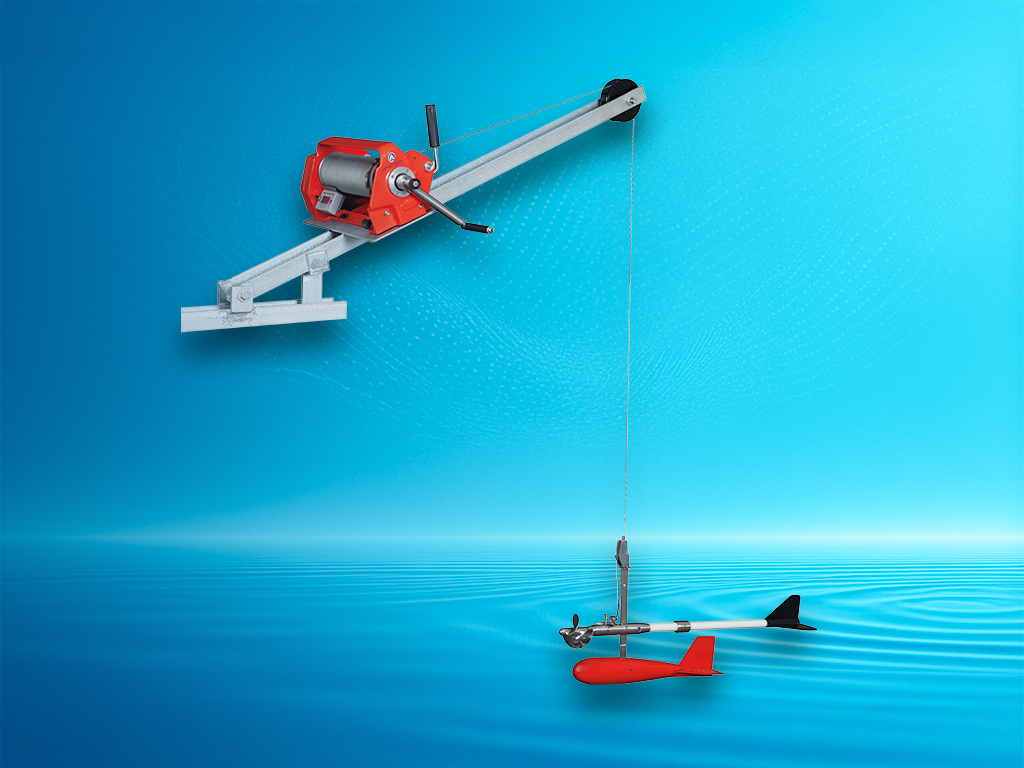

• Winch Board with outrigger

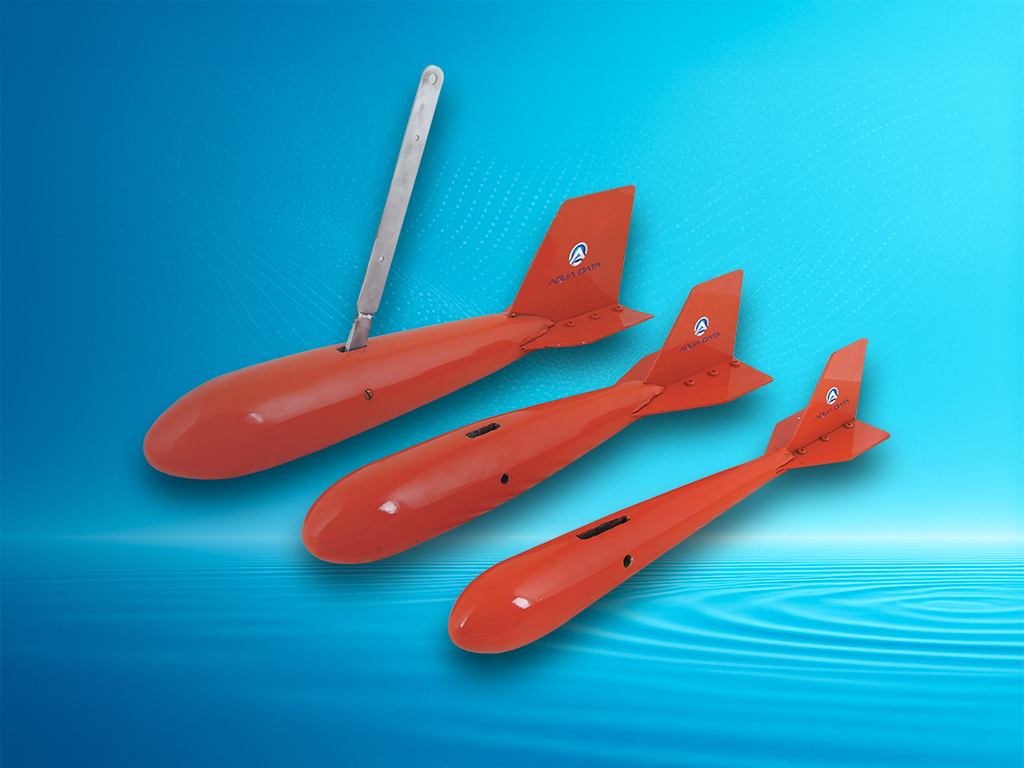

• Gauging Weights-sizes 7,14,23 or 45 Kg

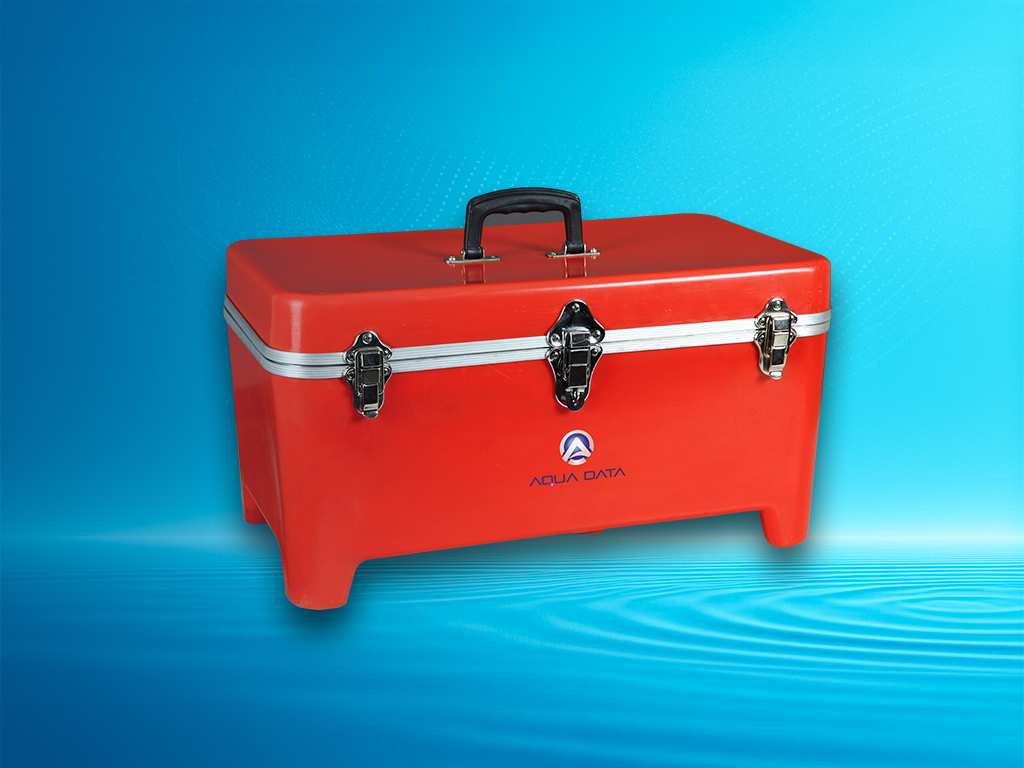

• Nose mount ground feeler weights with optional carrying boxes are available in 25 or 50 Kg. (Amergraph Cable):
• - 2.5 (1/10”)diameter,3 Kg/100 metres
• - 3.2 (1/8”)diameter,4.5Kg/100 metres
