STAFF GAUGE

Provides visual readings of water level

Staff Gauge is especially used to read the instantaneous water level in streams.
These indicators are convenient tools to show the instantaneous stage of water level that develops within a given observation period in inaccessible areas.

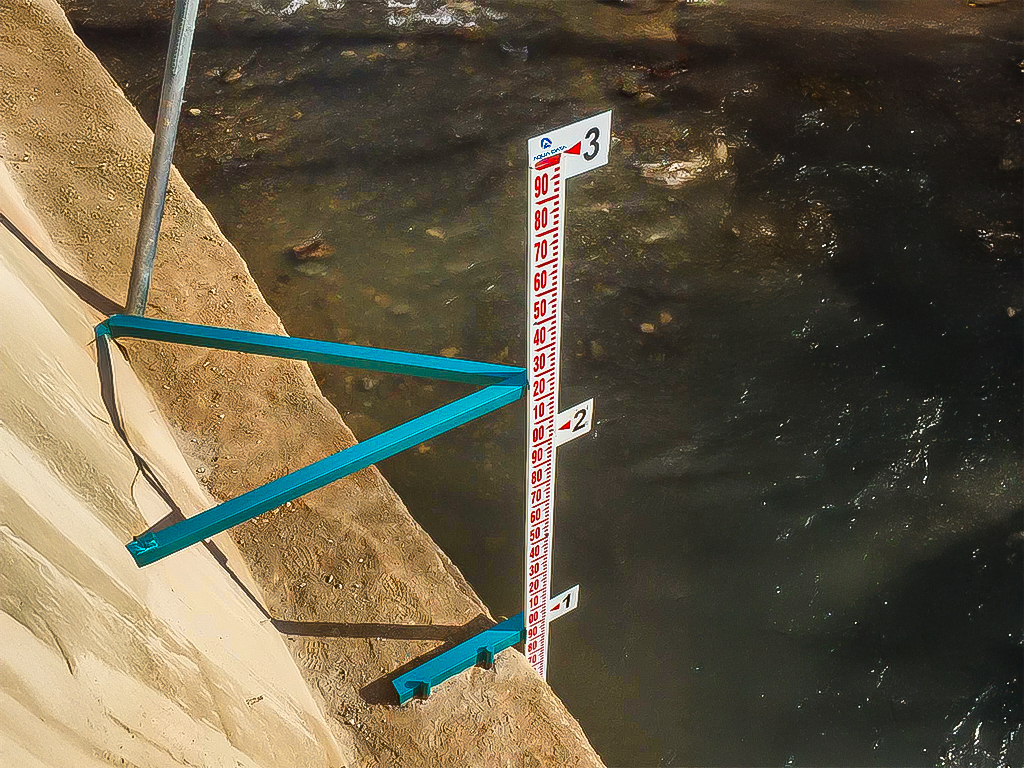

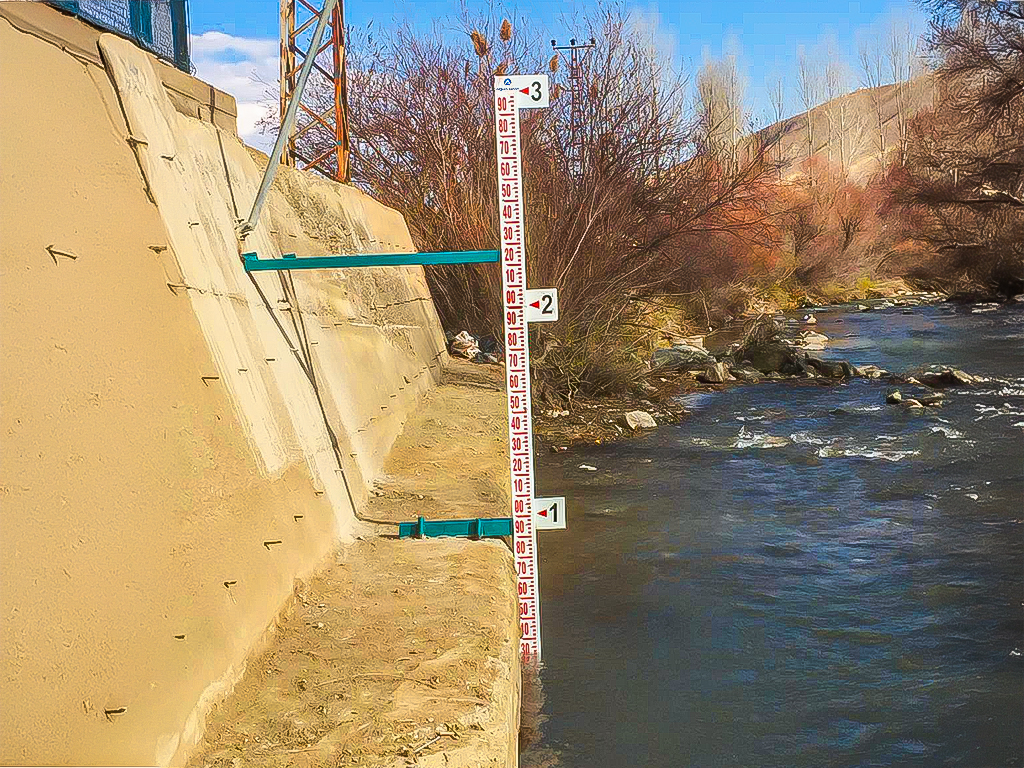

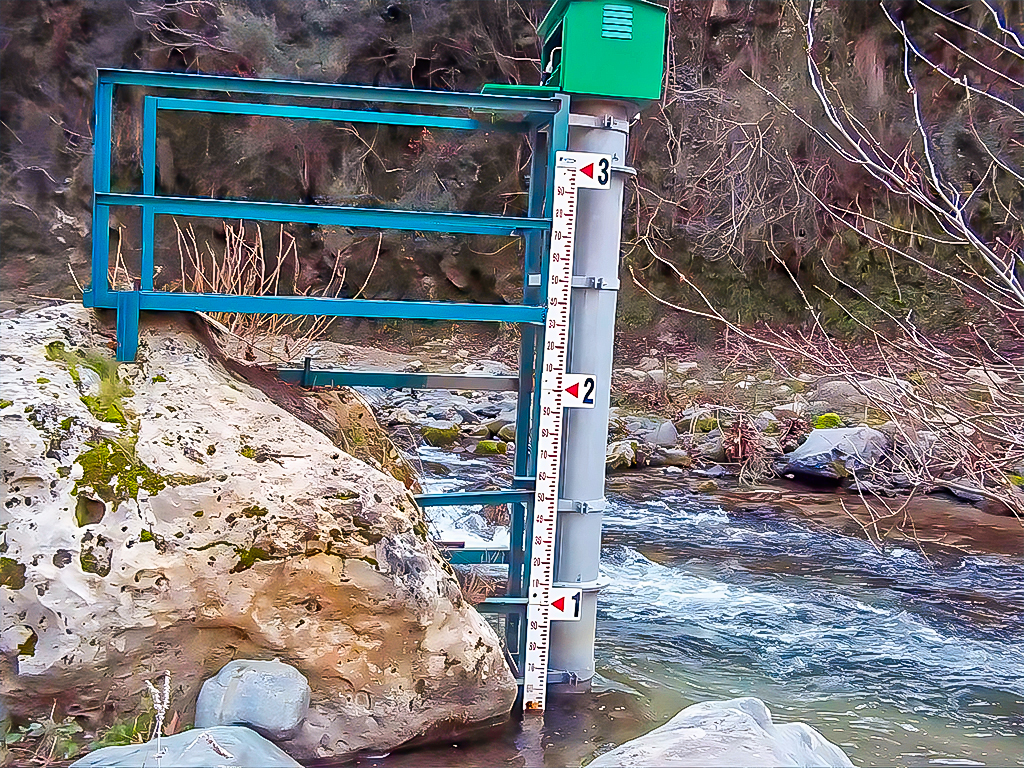

Staff Gauges are used in rivers, irrigation canals, dams, etc. used in flooded areas.
Available Models: 1m, 1.5m, 2m, ... 20m.

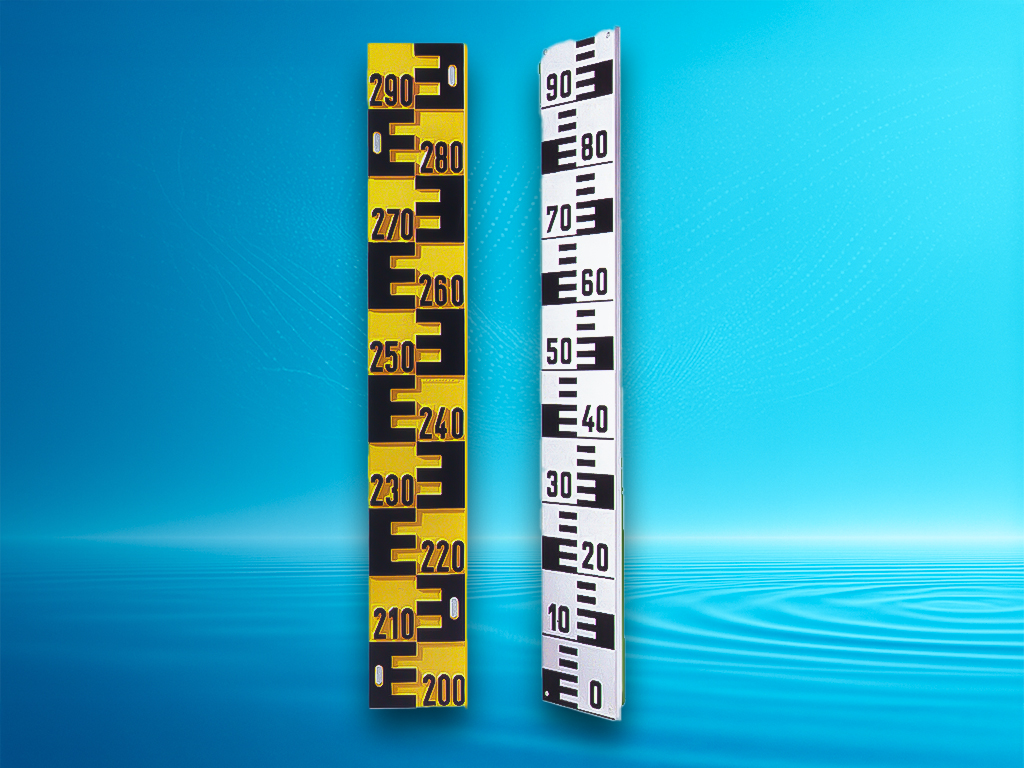

Staff Gauge water level indicators are made of enameled stainless steel sheet.
The front face is made of 1.2 mm carbonless decaf sheet (total wide is 125mm) , 10 cm wide front face, bent 12,5 mm and 90° backwards from the sides.

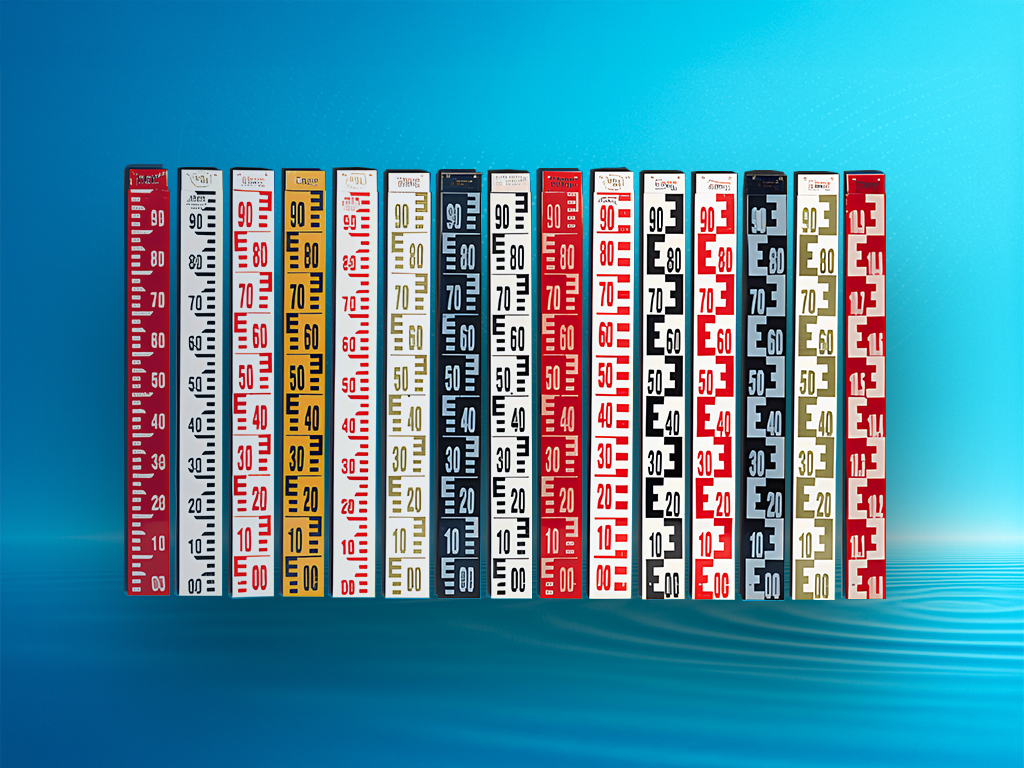

In line with customer demands, scales can be produced in different widths and thicknesses and in different colors.
In addition, for number plates, elevation plates and figures in different structures can be made in line with customer demands in the same way.

Pickled sheets cut in 1 m, 1.5 m or 2 m dimensions are thrown into the acid bath to be cleaned from oil and rust.
Then, the primer enamel is thrown on the sheet and it is fired at 860-870°C.
After this process, the white enamel is discarded and baked again at 860-870°C.
After the white enamel baking process, the figures (as stickers or prints) are transferred to the staff gauge.
It is fired again for the third time at 840-850 ° C.
It is not possible that the figures will be erased or engraved after firing.
It should be ensured that the figures enter the enamel thoroughly and boil.
The latest models are manufactured as 1 m. from the top point plugable to another and can be added to the top of the desired meter.
