EVAPORATION PAN

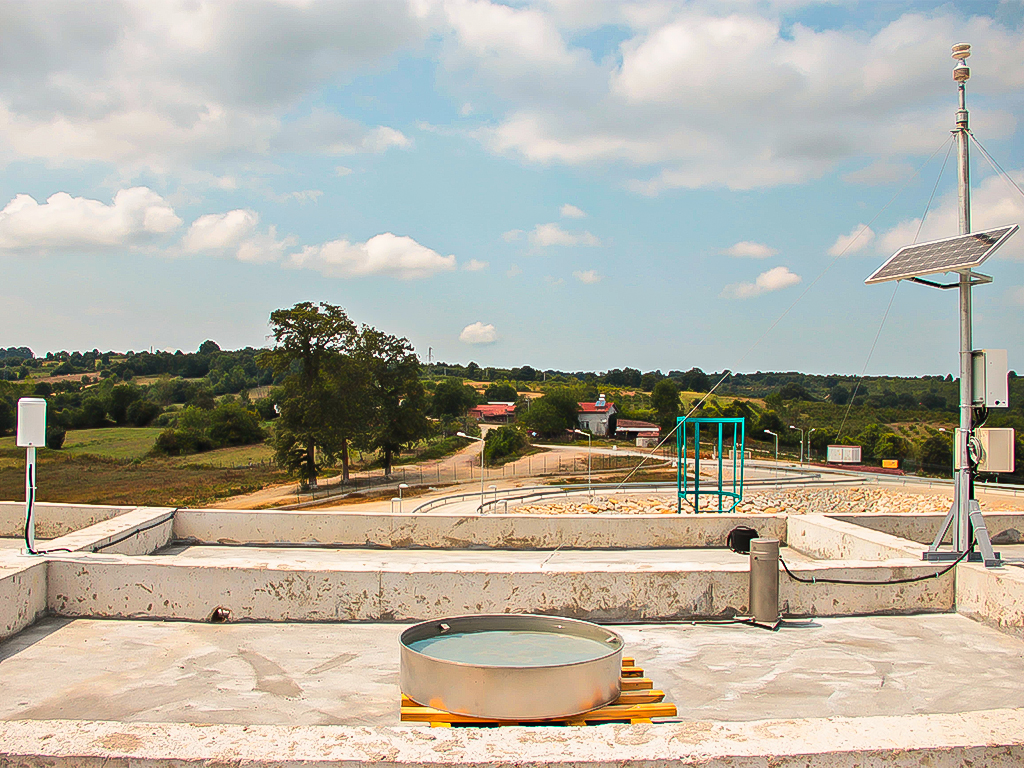

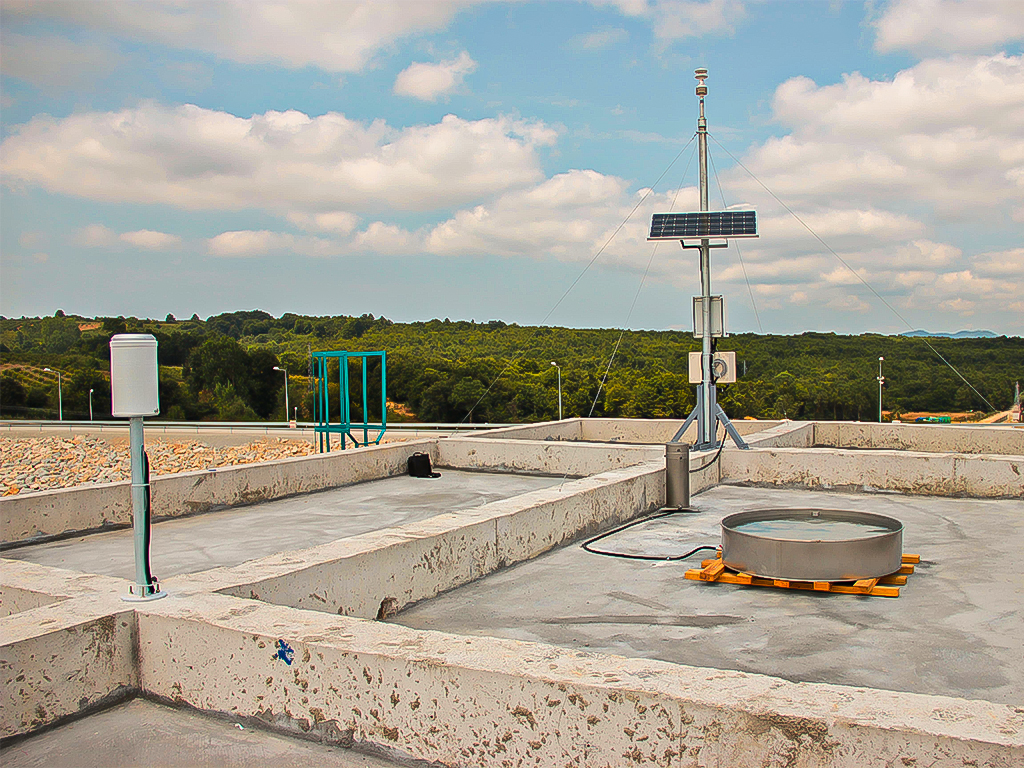

• AQUADATA-1 evaporimeter pan and wooden platform are build to WMO standards for "Class-A" evaporimeters.

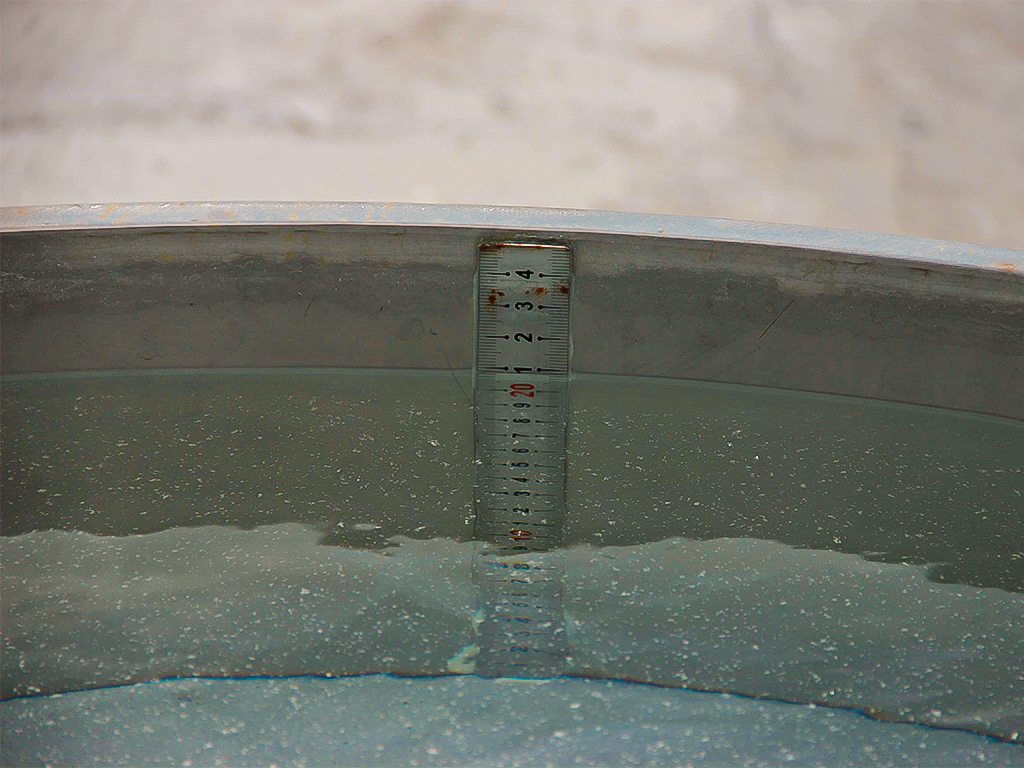

• Measures evaporation rate from a free water surface.

• Used by meteorologists and water engineers throughout the world.

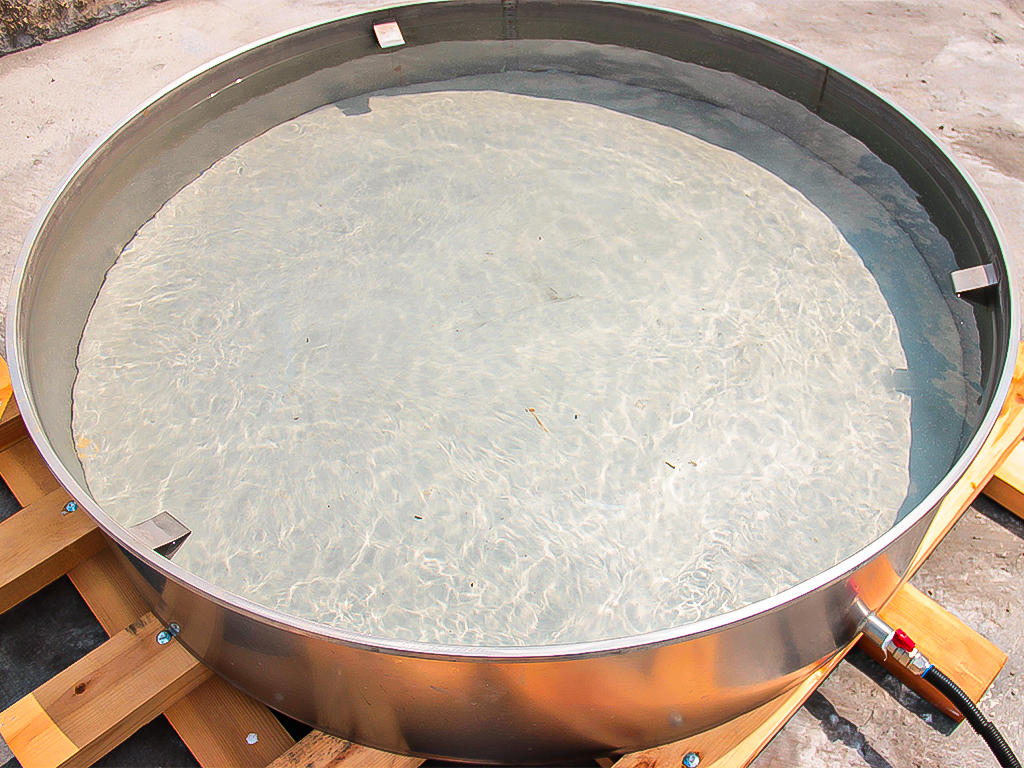

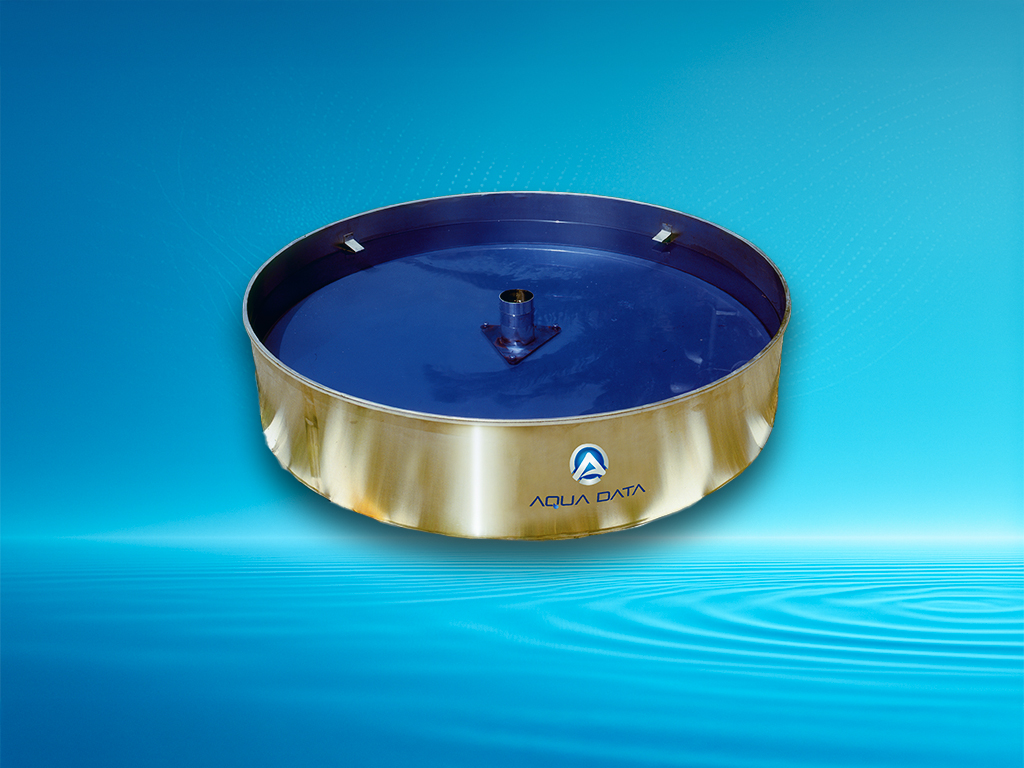

• The pan is in stainless steel.

• The wooden platform is made of larch wood coated with protective white
  paint tor exterior.

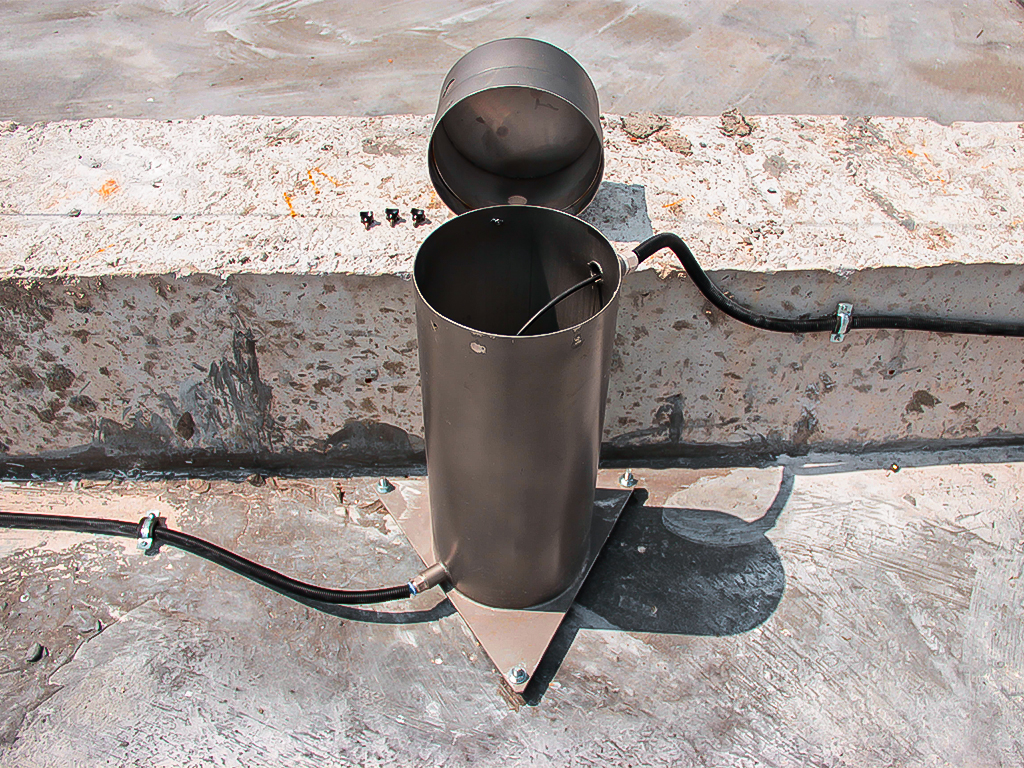

• The pool has a stainless steel chamber containing the evaporation level sensor.

• The evaporation pool sensor is a capacitive level transmitter.

• The core of the transmitter is a ceramic sensing element; has an excellent
  track record of long term reliability and stability.

• The exposed ceramic diaphragm is protected by a layer of gold.

• The gold is electrically connected to the casing.

• The cable has a sealed cable connection to the housing with vent tube.

• These gauges are designed for continuous submersible applications.

• The sensitive unit is connected to a junction box; A 3-wire cable will run
  from the junction box to the data logger.
