MINI METEOROLOGY STATION

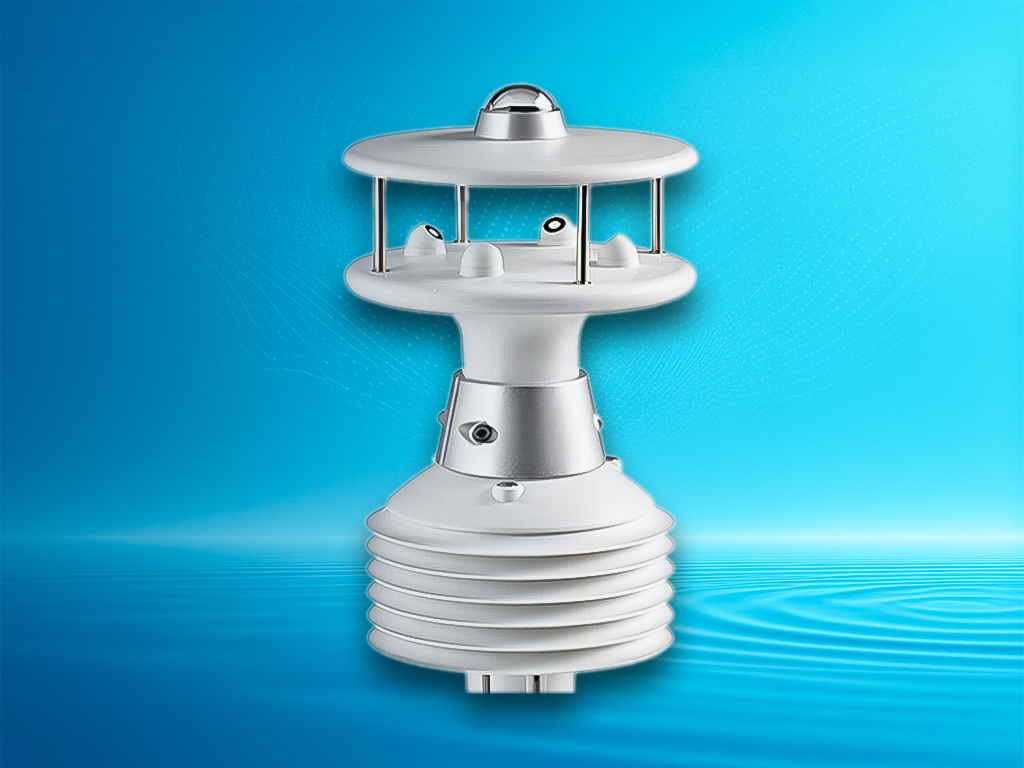

• The instruments of the series HD52.3D… are 2-axes ultrasonic static anemometers for the measurement of:
  -Wind speed and direction, U-V Cartesian components of wind speed
  -Relative Humidity and temperature (optional)
  -Global solar radiation (optional)
  -Barometric pressure (optional)
• The available measurement options combine in a single instrument the main quantities of meteorological interest, making the instrument like a compact and light meteorological station.
• All models are equipped with a magnetic compass.

• Wind speed and direction are determined by measuring the transit time of ultrasonic pulses between two pairs of ultrasonic transducers.

• RS232, RS485, RS422 and SDI-12 serial interfaces are available with NMEA, MODBUS-RTU and SDI-12 communication protocols.

• All versions have two analog outputs, for wind speed and direction, which are factory-configurable within 4÷20 mA (standard), 0÷1 V, 0÷5 V or 0÷10 V (to be specified when ordering).

• The heater option prevents the accumulation of snow and ice formation, allowing precise measurements in all environmental conditions.

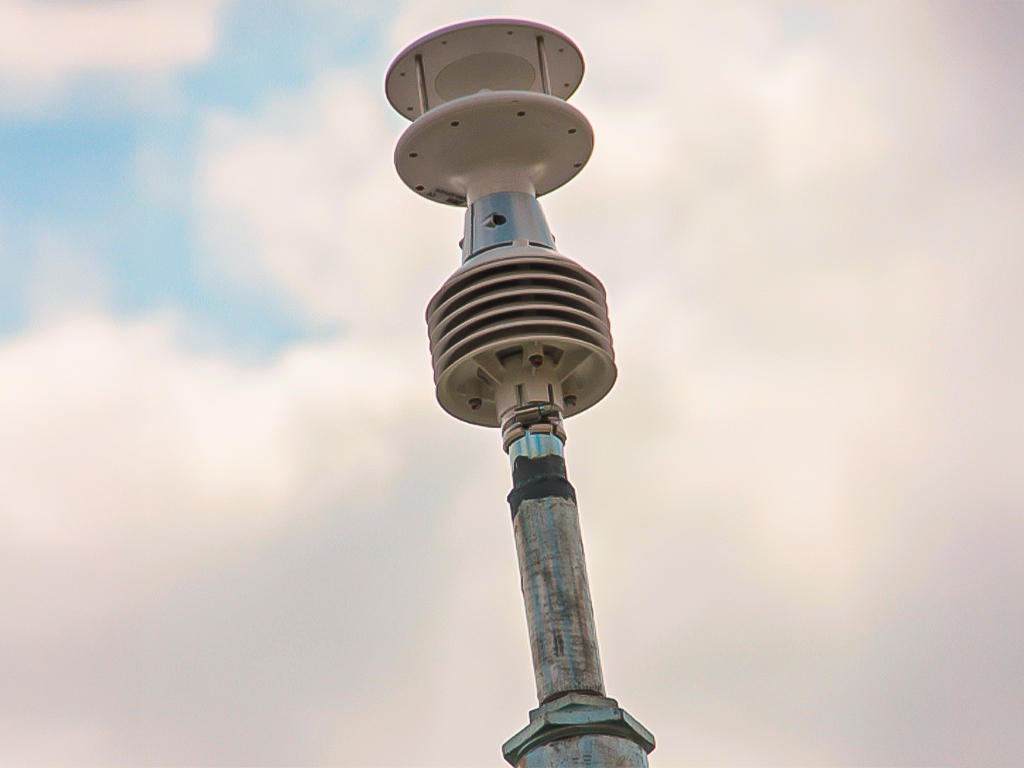

• Mounting on ∅ 40 mm mast. The electric connection is performed through a M23 19-pole connector situated on the bottom of the instrument.

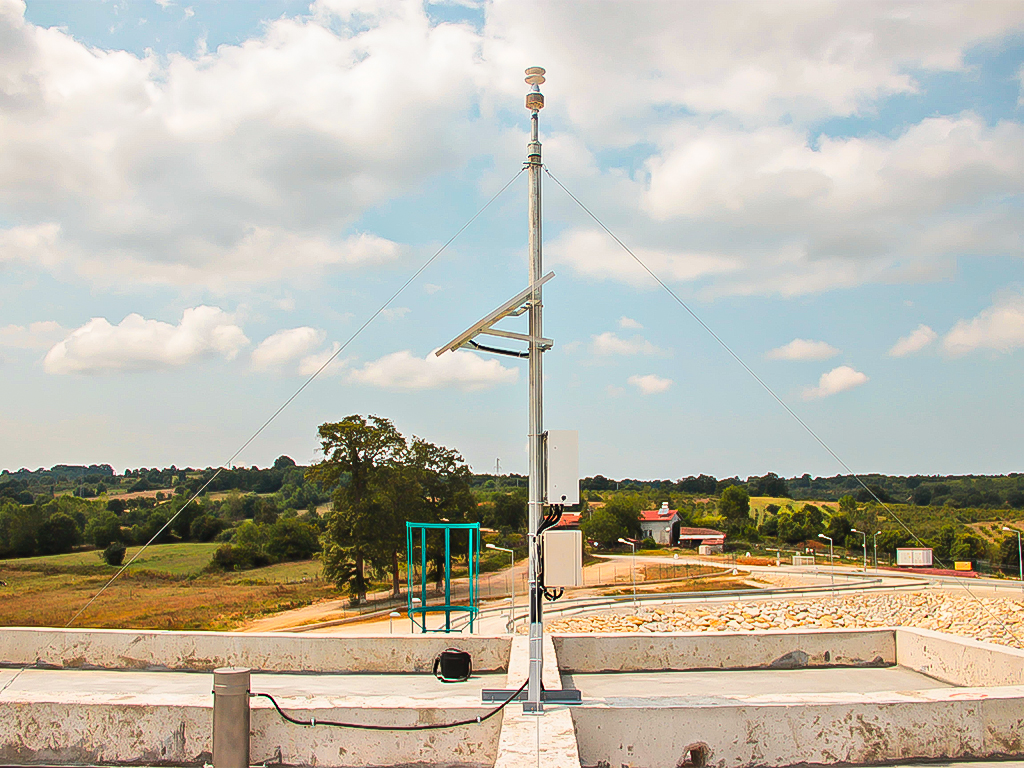

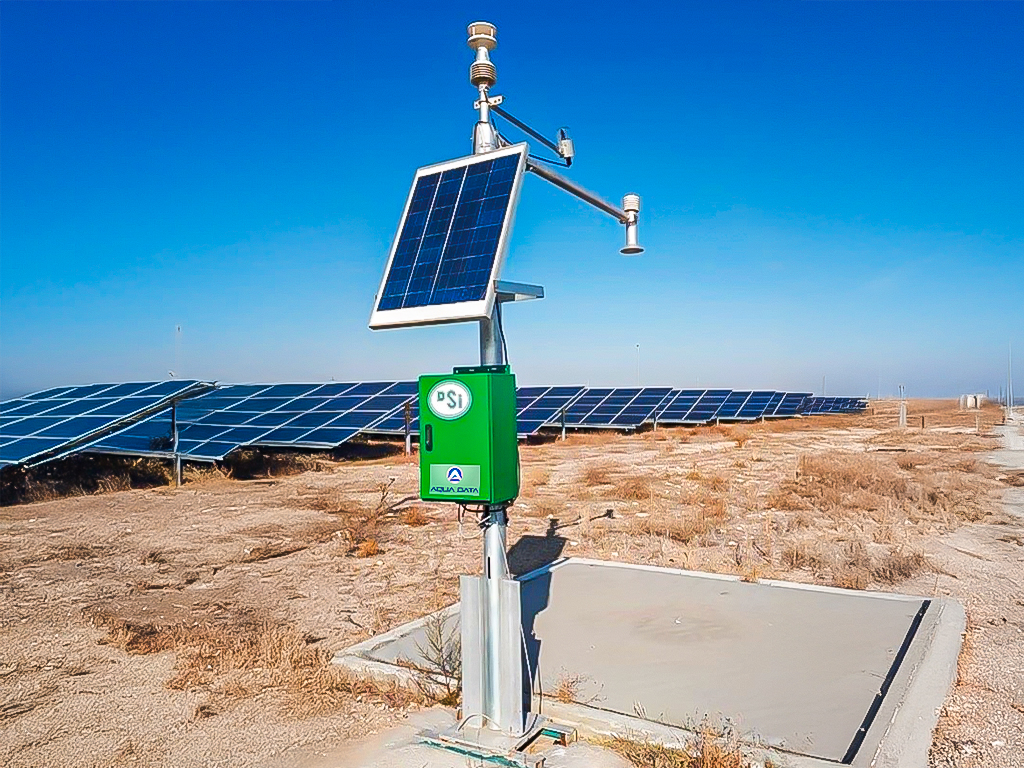

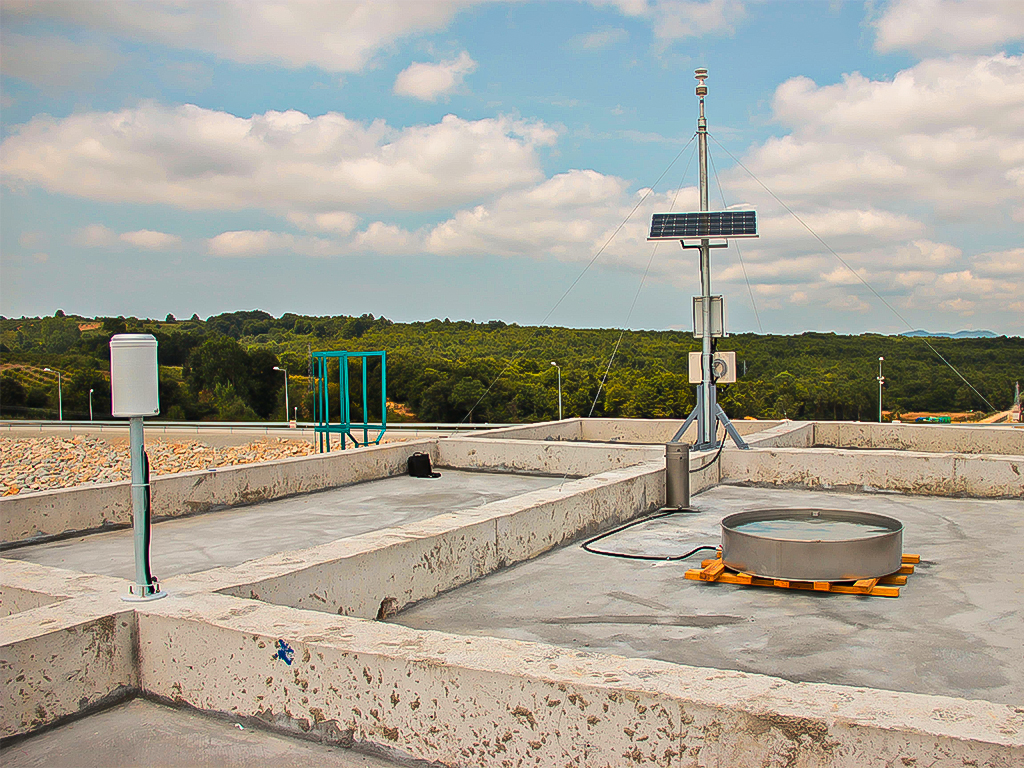

• The low power consumption of the instrument allows installation in remote sites, with power supplied by photovoltaic panel and backup battery.

• The absence of moving parts minimizes the instrument maintenance.
