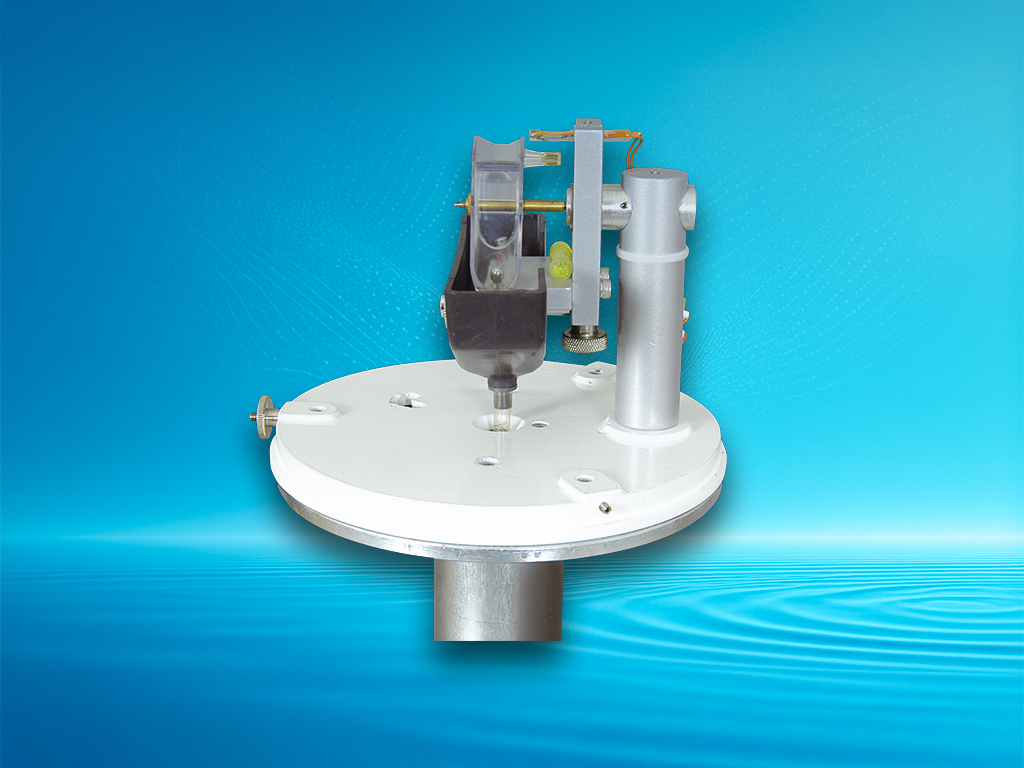

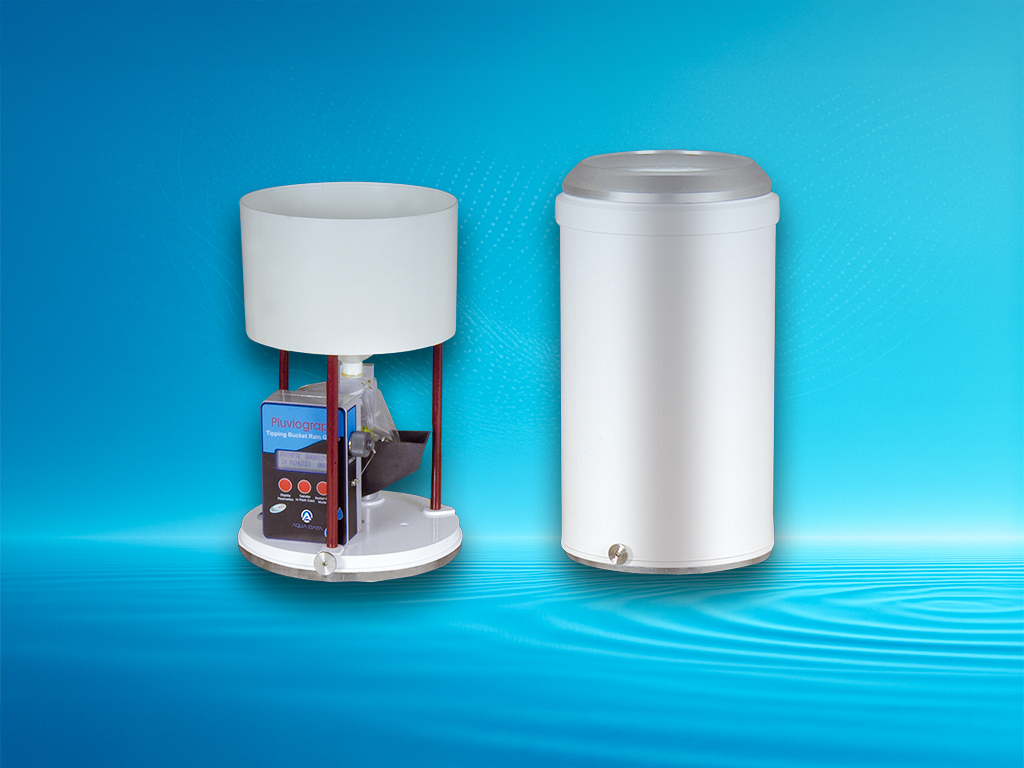

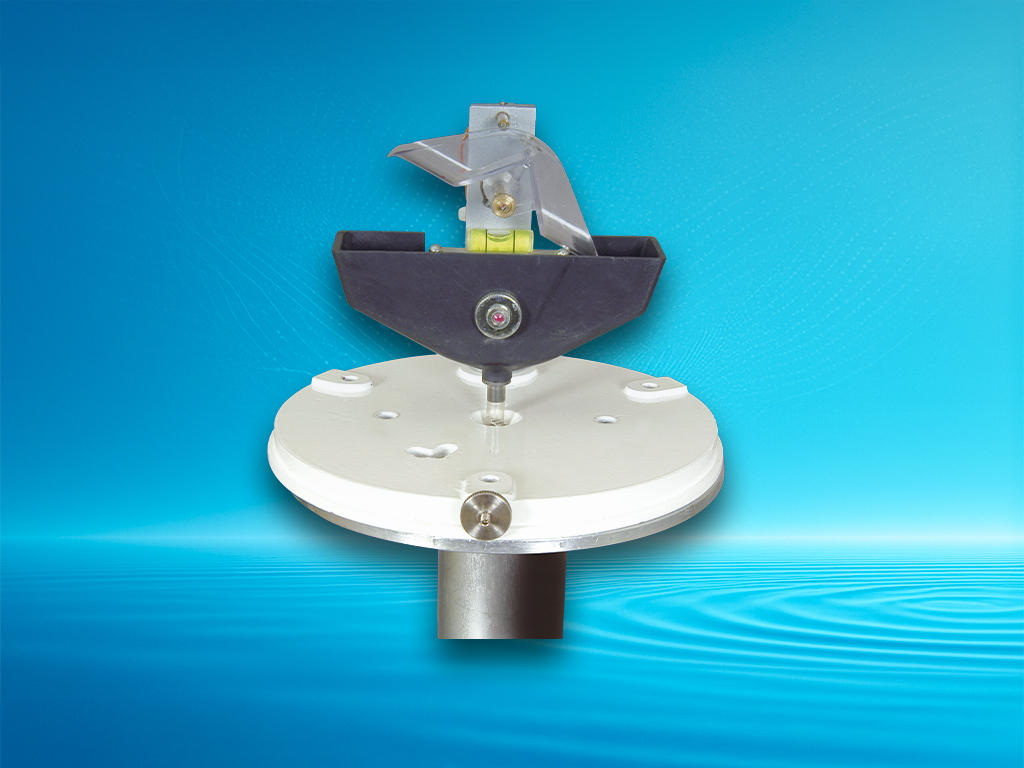

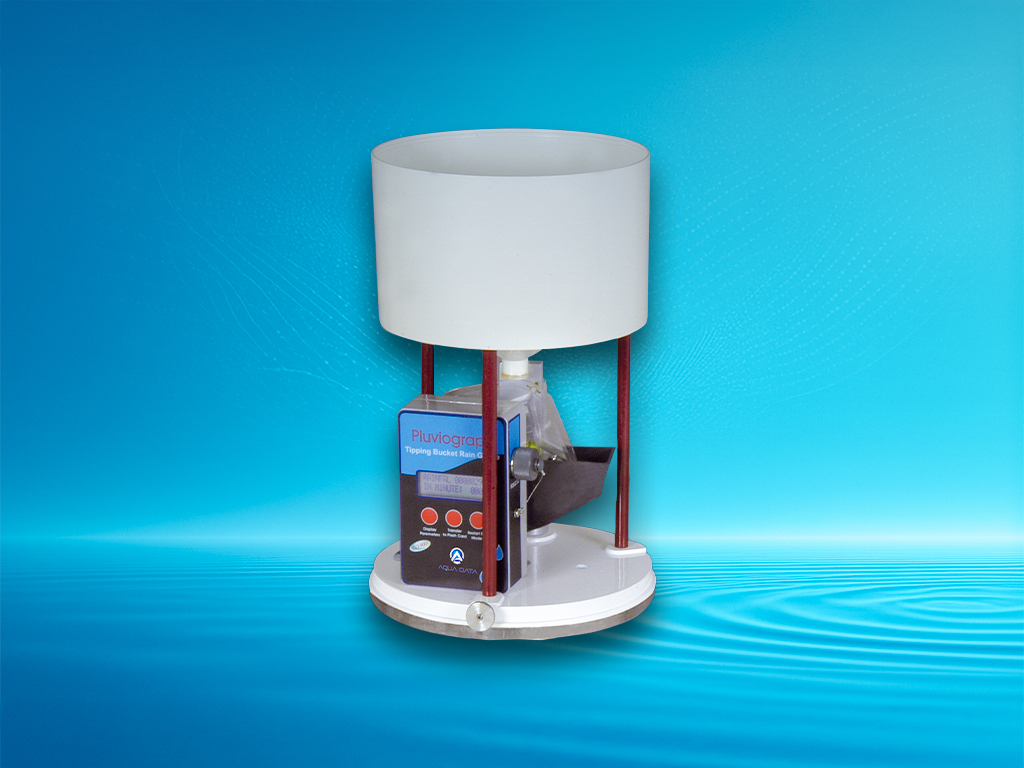

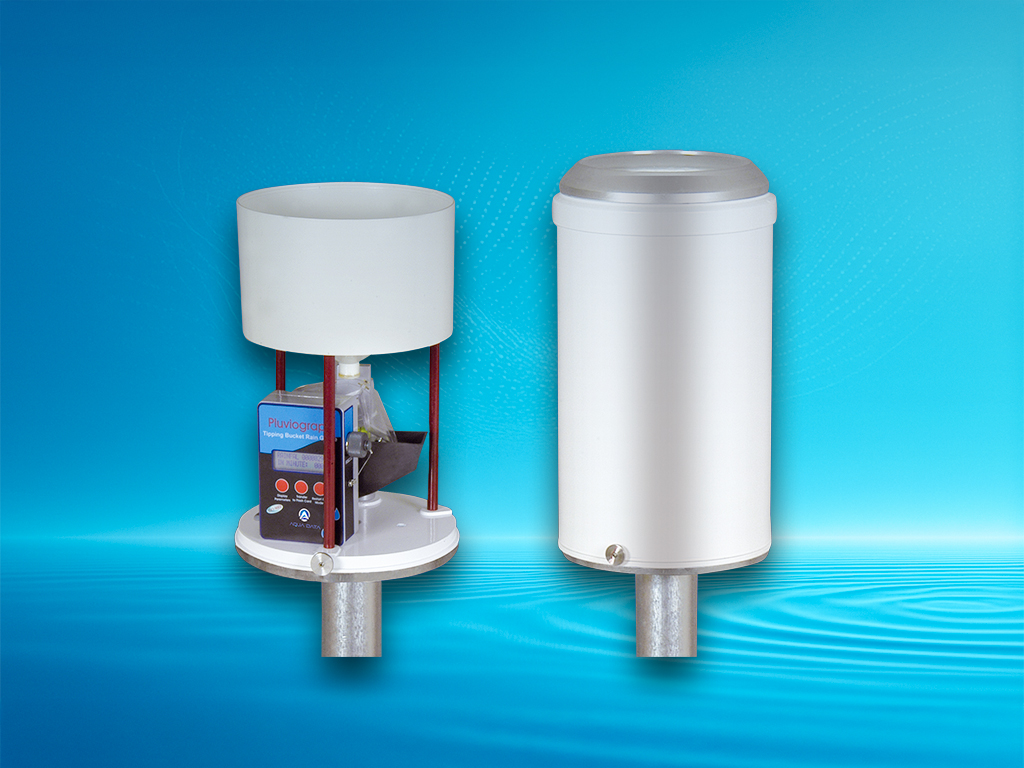

TIPPING BUCKET RAIN GAUGECollecting Area | 200 cm2 | Tipping Bucket | Made of plastic material (ABS) | Resolution | 1 impulse, = 0,1 mm rainfall | Bucket Size | 0,1 mm or 0,2 mm (adjustable) | Mechanism | Magnetic reed switch | Output | Reed contact impulse (potential free) | Material | Aliminium or Copper | Max. breaking capacity | 3 Watts | Max. switching capacity | 150 V, 0,25 A | Dimensions | Height: 355 mm, diameter: 205 mm | Weight | 3,7 kg |
OPTİONAL
Data Flash card
| 2 MByte. EEprom
| - GSM/GPRS Data Mode
- RF Data Modem
| PC tarafı GSM/GPRS Data MODEM ünitesi,
RF Modem Plüviograf tarafı GSM/GPRS
Data Collector ünitesi ve özel antenleri
| Weight
| 70 Watts, 24 Volt dairesel (ring) ısıtıcı ve
Power adaptörü (220V/24V, 100 Watts)
|
| DATA LOGGERDigital rainfall tipping bucket impulses as well as date and time
stamp on 2 Mbyte memory. Collection and storage of rainfall. Simple
operation, high operation reliability, robust, compact housing with
watertight foil keyboard. Total rainfall pulse count along with date and
time can be displayed using keyboard. After 15 seconds screen will
automatically shut off to save energy.
Design
| Hellman type (WMO standard)
| Ports
| RS-232 interface
| LCD Display
| 2 lines dot matrix, each of 16 (ASCII) characters.
(Total:32 characters). display of total rain, date/time,
high rain alarms, storage memory, setup parameters
and measured values. 15 sec. Auto shut off.
| Memory
| 2 MByte EEprom
| Storage Capacity
| Approx. 280.000 impulses 28000 mm rainfall
| Real Time Clock
| 24 hour time, accuracy ± 2 min. / 1 year. Quartz RTC
| Communication Link
| The communication between data logger and Laptop
is provided through the 5 pin connector at the right
side via RS-232 special cable or GSM line with GSM /
GPRS Data Modem and RF Modem device. Also 2
Mbyte Data Flash Card data transfer unit is available
| Alarm Management
| Alarm management automatic alarm messages via GSM
/GPRS Data Modem by SMS sent to: cell phones and PC.
...For flood warning, coast guard service
| Baud Rate
| 19200 bps Baut Rate.
| Remote Data
Transmission
| RS-232 interface (RG-200 data logger) it is enables to
connect the rain gauge directly to a GSM/GPRS modem
and RF Modem. Data download and system check / setup
can be done easily from the office.
| Setup/Read Out
| Setup and read-out is made over Lap-Top, a special
transmission RS-232 cable, Data Flash Card (2 Mbyte) or
GSM line with GSM/GPRS Data Modem device and RF
Modem by an AKIM HYDROMETRY make program PLV3-01.
| Power Supply
| Single. 3,6 Volt DC 8500 mAh C size Lithium battery
| Battery Life Time
| >10 years, at normal operation mode
| Battery Storage Time
| 10 years with % 10 capacity loss
| Software
| “Windows data management software” (PLV3-01) works
with Win95/98/2000/ ME/XP and Vista.
| Working Temp.
| -30 °C until +80 °C
| Storage Temp.
| -40 °C until +85 °C
| Humidity & Sealing
| 98 % relative, Waterproof IP67
| Case
| Pressure cast aliminium with foil keyboard, acc. to IP 67
| Case Dimensions
| Lenght x width x depth 125x80x40 mm
| Weight
| Approx. 495 gr
|
|
