Snow Water Equivalent
It is used to measure how much water the snow has.
- Info
- Techspecs
- Gallery
SNOW METER EQUIVALENT

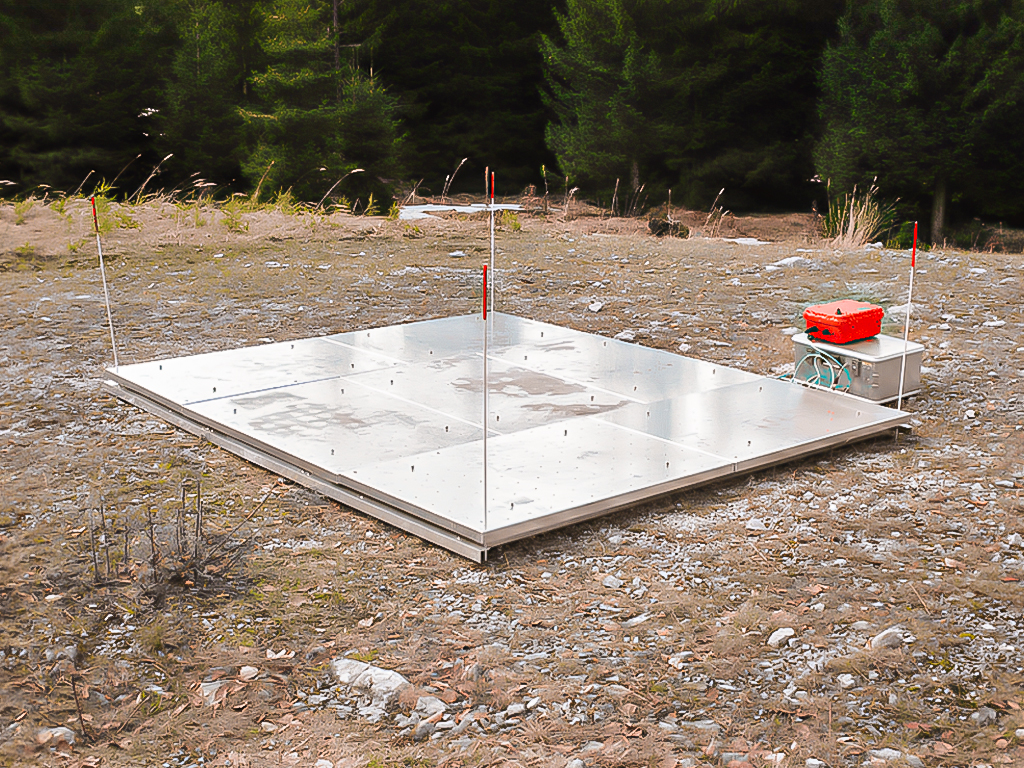

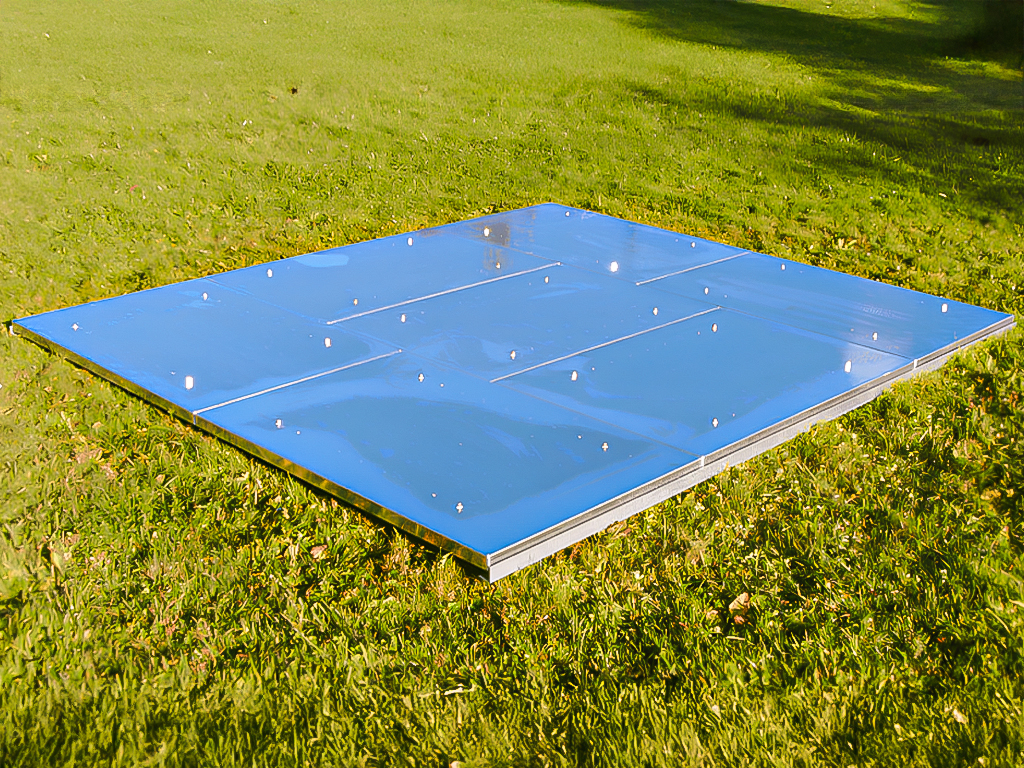

The snow scale is a measuring device, which measures the snow water equivalent (SWE) of the snow pack with a high level of precision and reliability. The installation is quick and easy. The fact that there is no anti-freeze needed makes the system environmentally friendly.
- Environmentally friendly: no antifreeze liquid needed
- Minimization of the ice bridging effects through an extra-large measuring surface
- Perforated plates: optimal thermal flow between ground and sensor and melt water run-off
- Stable, durable aluminium construction

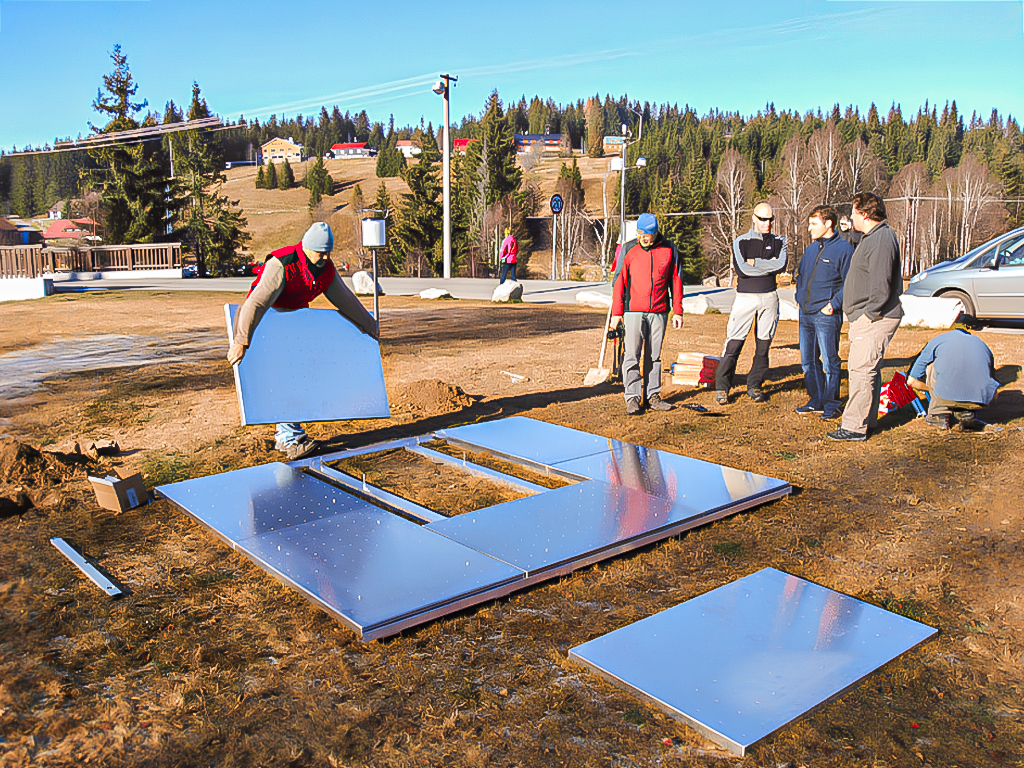

- No preparation of the measuring site is necessary
- Easy system integration
- Measuring range: 1,000 / 2,000 / 3,000 mm SWE
SNOW METER EQUIVALENT
| Measurement Range | 1,000 / 2,000 / 3,000 mm SWE |
| Resolution | 0.1 kg/m² ≙ 0,1 mm SWE |
| Accuracy | 0.3 % (FS) |
| Measuring Surface | 6.72 m² |
| Total weight | 130 kg |
| Dimensions | 2800 x 2400 x 103 (L x W x H mm) |
| Protection | IP 68 |
| Power source | 10 ... 30 VDC |
| Power Input | max. 70 mA |
| Operating temperature | - 40 ... +80 °C |
| Maximum Slope | 5° |
| Output | SDI-12, RS-485 (ASCII and MODBUS), 4 ... 20 mA |
| Other Features | Improved Lightning Protection |
