Ultrasonic Snow Level Measurement

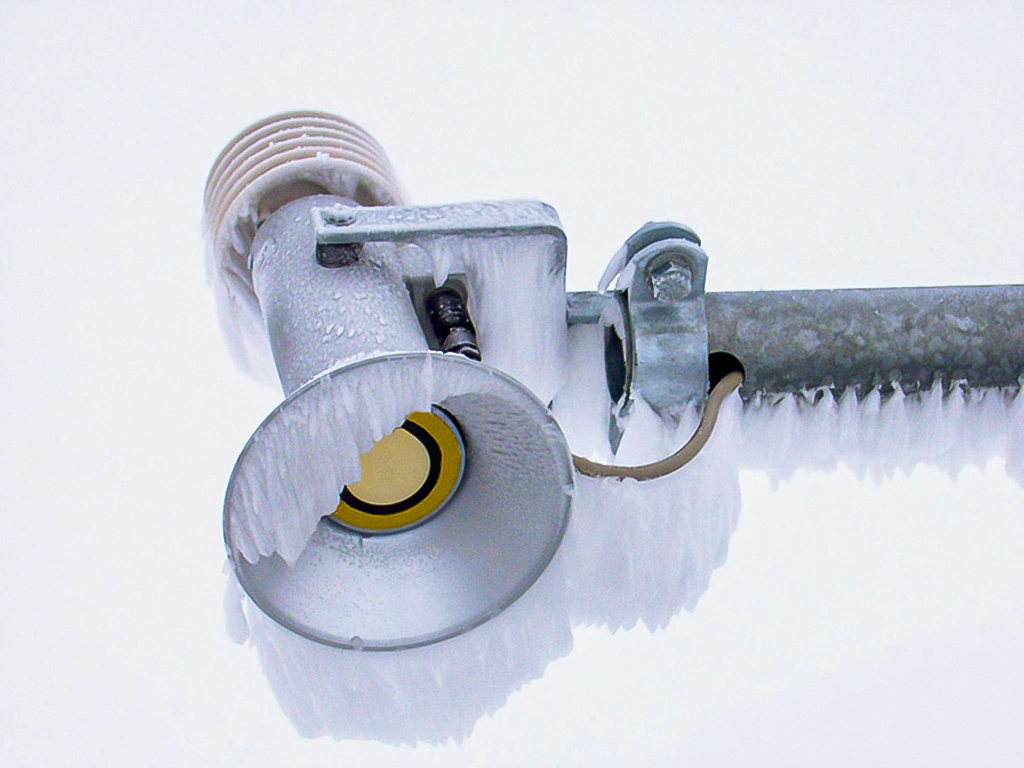

Thanks to the ultrasonic sensor on it allows you to accurately measure and record the snow level without being affected from icing.
- Info
- Techspecs
- Gallery
ULTRASONIC SNOW LEVEL MEASUREMENT
- The Ultrasonic Snow Level Measurement Device provides high-precision, non-contact level monitoring even under harsh environmental conditions.
- With a wide operating temperature range (-40°C to +60°C), high resolution (1 mm), and ±0.1% full-scale accuracy, it ensures reliable measurement on snow, water, and other surfaces.
- Equipped with 1GB internal flash memory, it enables long-term data logging.
- User-defined logging intervals (from 1 to 1440 minutes) offer flexibility for detailed trend analysis.
- The system supports RS-232, RS-485, and USB interfaces for easy integration, along with a 4–20 mA analog output for external control and monitoring systems.
- Rated IP65 (device) and IP66 (sensor), it is designed for long-term durability in outdoor environments.
- A user-friendly 128x64 graphic LCD and a 4-button keypad provide intuitive control.
- A 3.6V lithium backup battery ensures that time-stamped data remains accurate even in the event of power interruptions.
ULTRASONIC SNOW LEVEL MEASUREMENT
| Memory | 1GB Data Flash Memory |
| Operating Temperature | -40°C between +60°C |
| Measurement Range | 0...10m |
| Accuracy | %0.1(FS) |
| Resolution | 1mm |
| Monthly Time Deviation | +-1min. |
| Logging Time Range | 1' , 5' , 10' , 15' , ...60'....1440' |
| Interface | RS-232 , RS-485 , USB |
| Output | 4...20mA |
| LCD Screen | 128x64 Grafic Dot Matrix |
| LCD Operating Temperature | -20°C between +70°C |
| Keypad | 4 Button Keypad |
| Backup Battery | 3.6V Lithium (for RTC) |
| Protection | IP65 |
| Sensor Protection | IP66 |
| Operating Voltage | 10,5 ........ 15 V |
