Wind Direction and Speed Mechanical Measuring Station
Calculating and Recording with Mechanical Sensors on Wind Direction and Speed.
- Info
- Techspecs
- Gallery

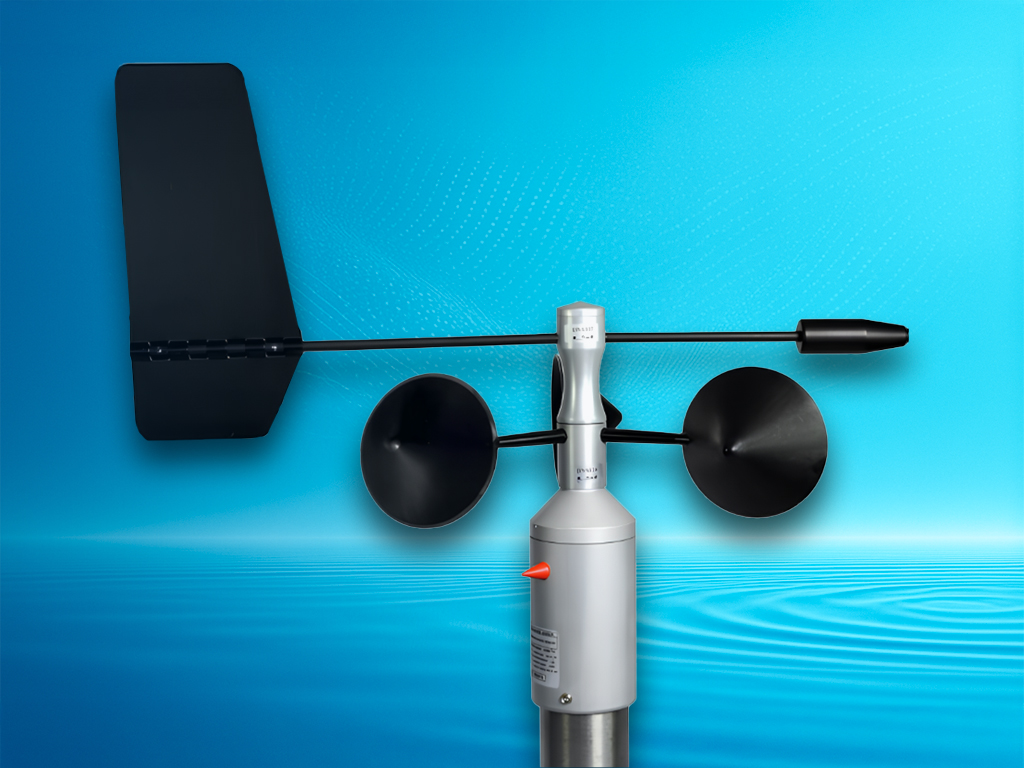

WIND DIRECTION AND SPEED MECHANICAL MEASURING STATION
- Thanks to 2 separate sensors, which have wind speed and direction, the data recorder log the datas at the desired time intervals.
- It is used in meteorological stations, WPPs and other areas.
- The wind direction is shown as a degree value between 0 and 360 degrees.
- Displays wind speed in m / s.
WIND DIRECTION AND SPEED MECHANICAL MEASURING STATION
| Wind Direction | Wind Speed | |
| Working Principle | N.32 step optoelectronic disk | N.32 step optoelectronic disk |
| Threshold | 0,25 m/s | 0,3 m/s |
| Accuracy | 1% | 0÷3 m/s=1,5%; >3 m/s= 1% |
| Measuring range | 0 - 360 ° | |
| Resolution | 0,07 m/s | |
| Operative temperature | -35 ... + 70 ° C (without ice) | -35 ... + 70 ° C (without ice) |
| Operative damage limit | 75 m/s | |
| Materiel | Anodized aluminum | Anodized aluminum |
| Mounting | ø 48 - 50 mm | ø 48 - 50 mm |
| Power Supply | 10 - 14 V DC | 10 - 14 V DC |
