Digital Resistivity Meter
Single channel resistance meter, the most accurate SP data possible.
- Info
- Techspecs
- Gallery
- Documents

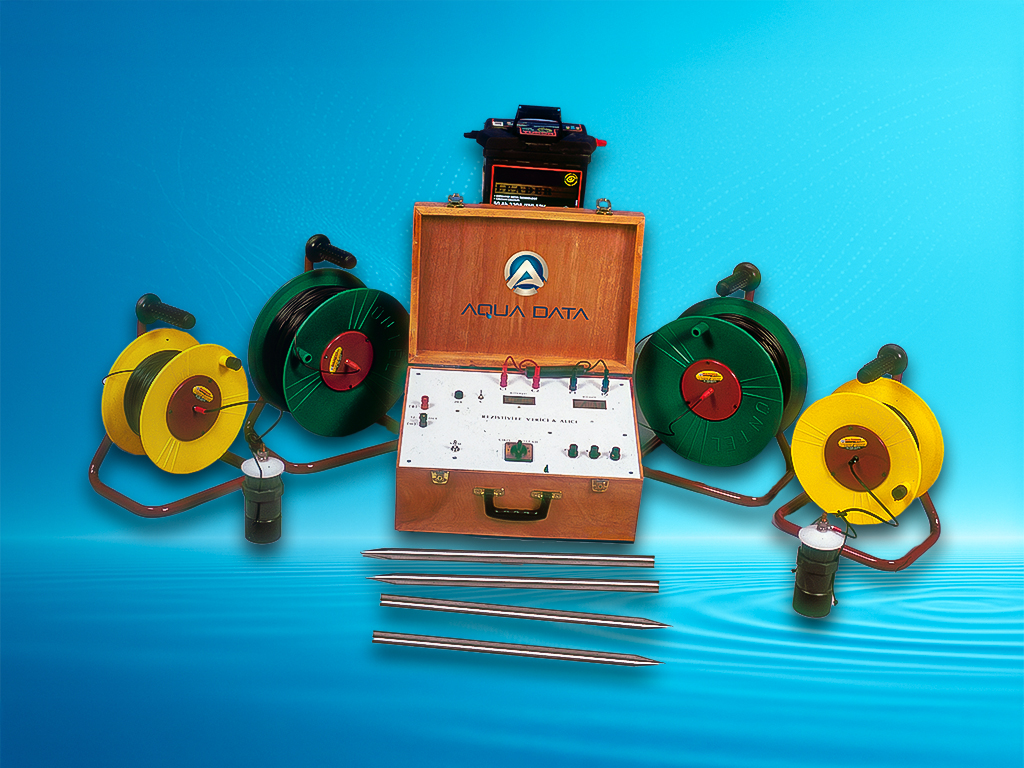

DIGITAL RESISTIVITY METERSingle-channel resistivity meter from AQUADATA Electronic's, delivering the most accurate possible SP data. The resistive meter set; transceiver and receiver units are on the same device;
Resistivity meter is used for environmental geology, determination of depth of ground water table, depth of rock, change of soil structure, determination of landslides and determination of underground layers and mine exploration. Operational Depth
|
TRANSMITTER
| Power Supply | 12V DC / 45 Ah Battery |
Output Current | 10 , 20 , 50 , 100 , 200 , 300 , 400 , 500...mA |
Maximum Output Voltage | 50 , 100 , 150 , 200 , 500 V. |
Maximum Output Power | 700 Watt |
Pulse Duration | 0.1 to 4 seconds |
Accuracy | %1 mA |
LCD Display | 4,5 Digit |
RECEIVER
| Channel | 1 |
| Input Impedance | 10 MΩ (Minimum) |
| Voltage Range | Automatic from 10.01 mV to 1999 mV |
| Accuracy | 0,01 mV |
| LCD Display | 4,5 Digit |
SELF POTENTIAL (SP)
| Channel | 1 |
| Maximum Input Voltage | ±0–700 mV Manual |
| Accuracy | %1 |
| Dimensions | 30x42x17cm |
| Weight | ~1,5 kg. |
ACCESSORIES
| 4 chromium-nickel electrodes 2 copper sulfate pots | |
| Cable Reels | Current Cable: 2 reels × 500 m Voltage Cable: 2 reels × 100 m |
| Power Supply | 1 unit of 12V battery |
