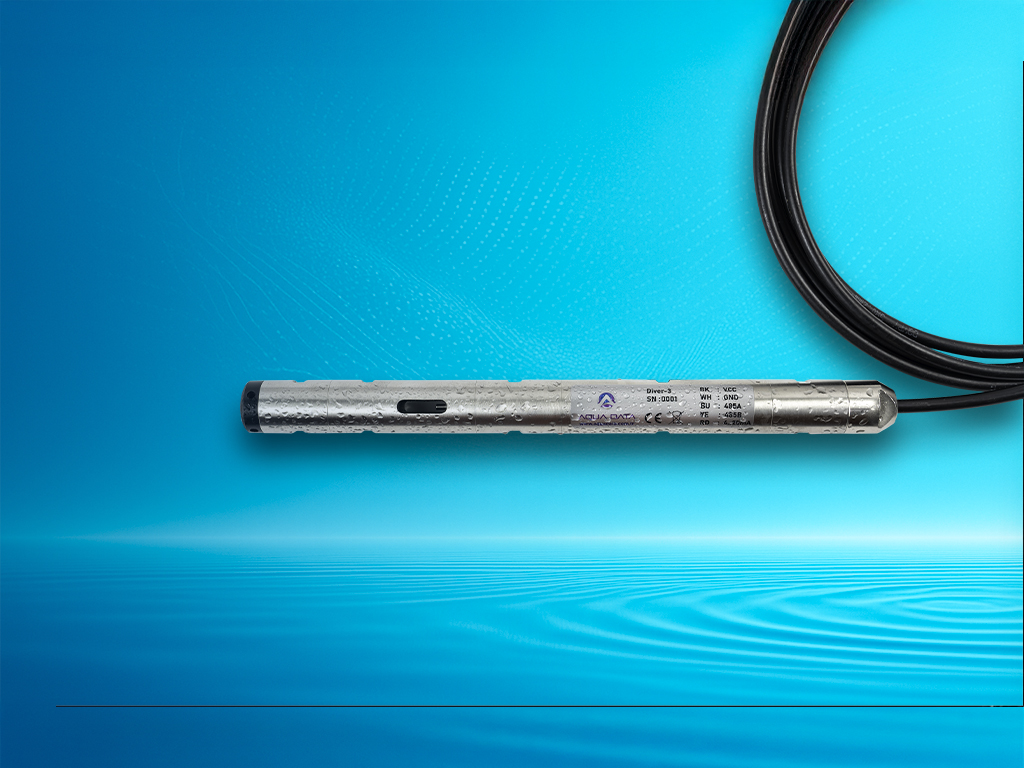

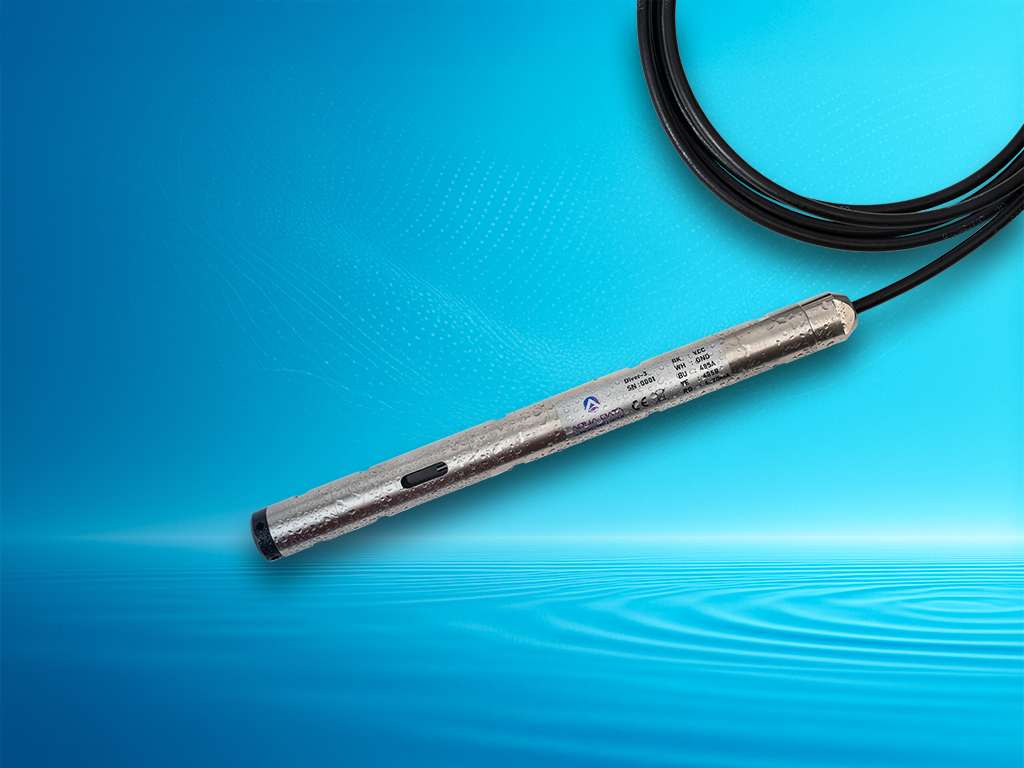

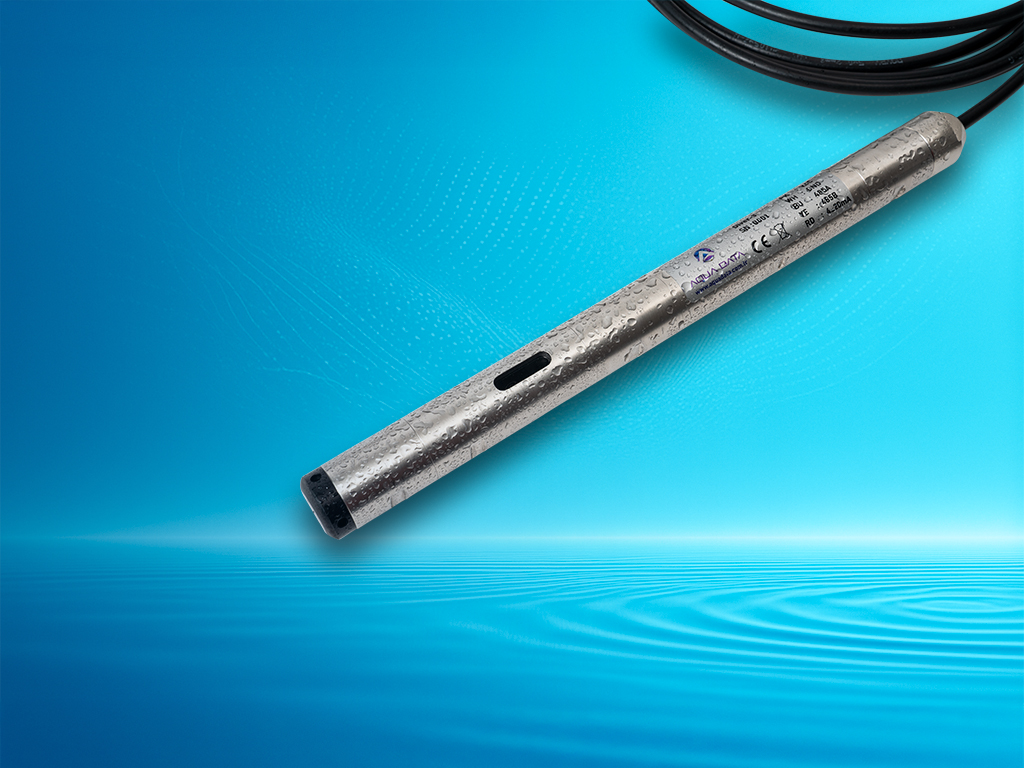

DIVER-3

Diver 2 and Diver 3 Models are the most advanced high-precision multi-parameter sensors of the Diver series.

In addition to measuring the depth of water bodies of water pressure, its Diver-3 can also measure water temperature and electrical conductivity (EC) of water. Variation of measured values with temperature, non-linearity problems are compensated by calibrating with the built-in microcontroller via a mathematical model. This ensures precise measurement results in all conditions.

Thanks to its specially designed conductivity measuring cells, it is not subject to polarization effect in the long term and does not require calibration.
In measuring stations powered by solar energy thanks to low power consumption It is suitable for long-term use.

USAGE AREAS

Surface waters , groundwater , waste waters, wells, tanks etc…

MEASURED PARAMETERS

Water Level, Pressure, Temperature

INTERFACE

RS485(MODBUS) , SDI12 , 4…20mA

MEASUREMENT TECHNOLOGY

Vented Atmospheric Pressure Compensated pressure cell and PT100

INTERNAL DATA LOGGER

None, Compatible with external data logger.

PROBE HOUSING MATERIAL

Stainless Steel (AISI 304) / Resistant to sea water.

Water Level Measurement (Pressure) DİVER2/DİVER3

Pressure Sensor	316SS GAUGE SENSÖR, temperature compensated
Measuring Range	0 ...10 m , 0 ...35 m , 0…100 m water depth (standard 3 options) 0...350 m (optional)
Resolution	0.0001 m; 0.01 cm; 0.001 ft; 0.01 mbar; 0.0001 psi
Accuracy	≤ ± 0.05 % FS
Long Term Stability	≤ ± 0.1 % FS
Zero Drift	≤ ± 0.1 % FS
Overload Resistance	≤ 2 x maximum measuring point
Temperature Compensated Temperature Operating Range	-10 °C ... +80 °C (ice-free environment)
Measurement Units	m, cm, ft, mbar, psi

Temperature Measurement DİVER2/DİVER3

Sensor	PT100
Measuring Range	-40 °C ... +80 °C
Calibrated Measuring Range	-10 °C ... +70 °C
Resolution	0.01 °C
Accuracy	±0.1 °C
Unit	°C

Conductivity Measurement (DİVER 3)

Sensor	4 stainless steel (316) electrode
Calibrated Working Range	-10 °C ... +80 °C (ice-free environment)
Measuring Range	0 ... 10 mS/cm , 0 ... 100 mS/cm , 0 ... 200 mS/cm (Optional measuring ranges can be calibrated)
Resolution	1µS/cm
Accuracy	±1 µS/cm or the measured value ± 0.5 % i (whichever is higher)
Unit	µS/cm , mS/cm , S/cm

Other Features DİVER2/DİVER3

Probe Housing Material	POM, stainless steel( Resistant to sea water and waste water)
Standards CE-Conformity (EMC)	EN 61000-6-1 to 6-4 EN 61326-1 EN 61326-2-3
Protection Class	IP:68
Operating Temperature Range	- 20 °C ... + 80 °C
Storage Temperature Range	- 40 °C ... + 85 °C
