LEVEL SENSORS

Designed for harsh environments: The level sensors of the MPx series are robust and durable. These advanced piezoresistive pressure transmitters deliver a variety of measurements, such as surface water levels or well levels, and are a perfect addition to the Rittmeyer measurement systems.

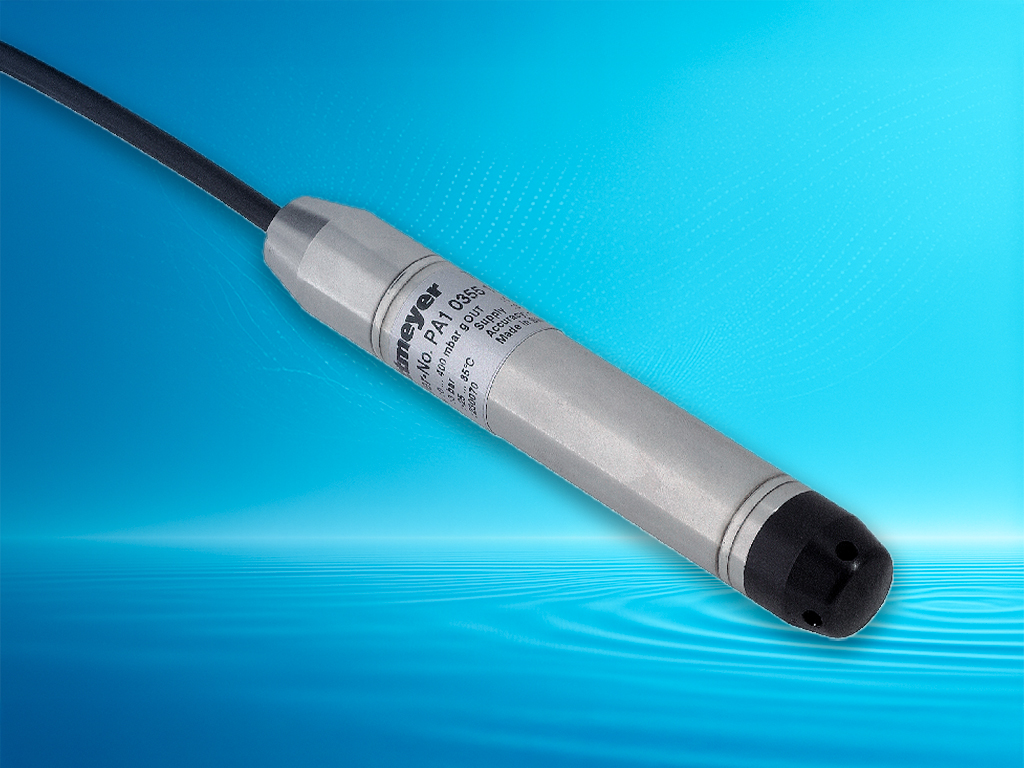

MPA immersion probe

• Accuracy 0.25% FS
• 2 wire technique
• Output signal 4...20 mA

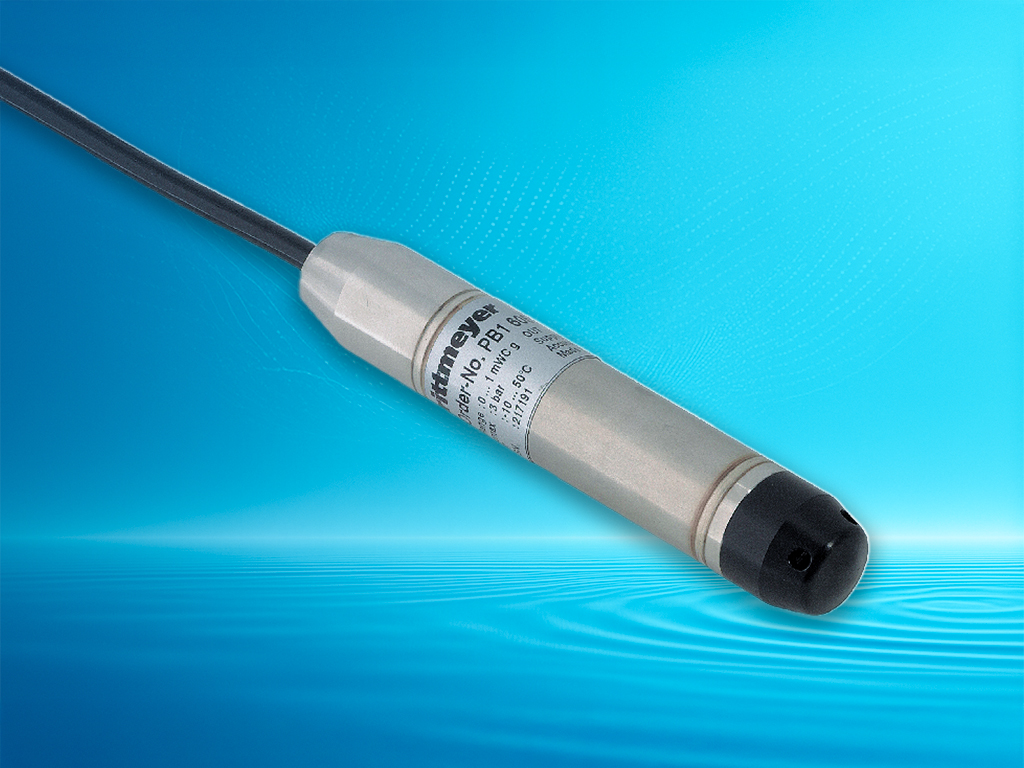

MPB immersion probe

• Accuracy 0.1% FS
• 2 wire technique
• Adjustable operating range, programmable attenuation of the power output
• Adjustable compensation for drift and/or steepness
• Output signal 4...20 mA

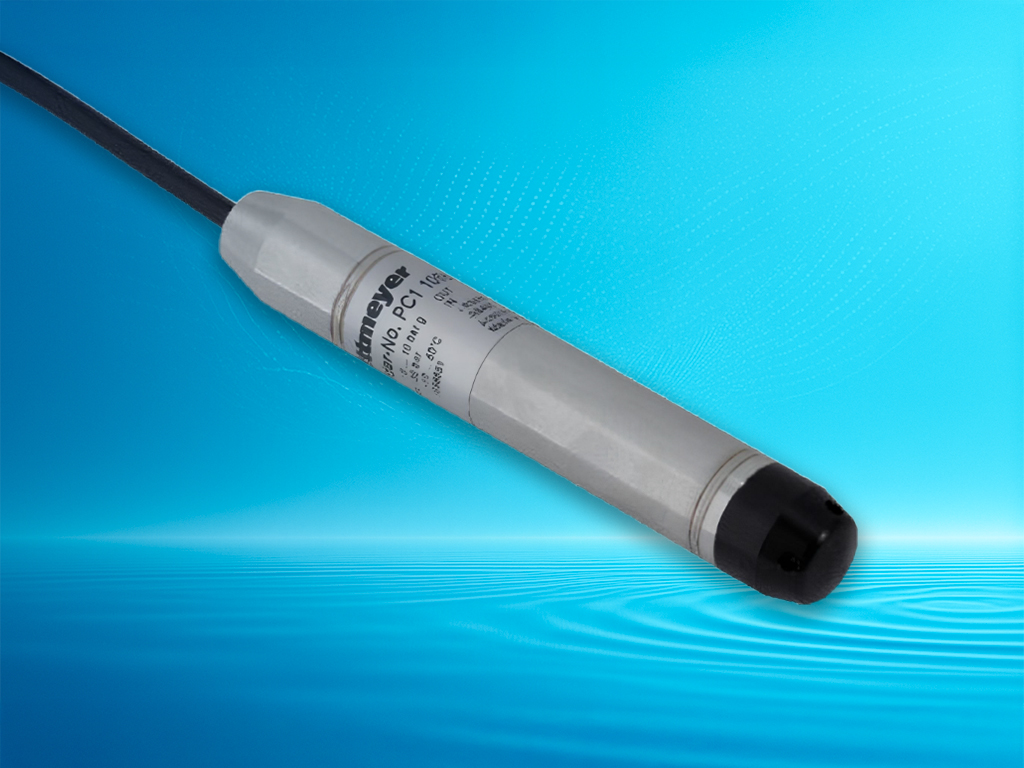

MPC immersion probe

• Accuracy 0.1% FS (optional: 0.05% FS)
• 5/6 wire technique
• Programmable
• Output signal 4...20 mA and digital (Modbus RTU)

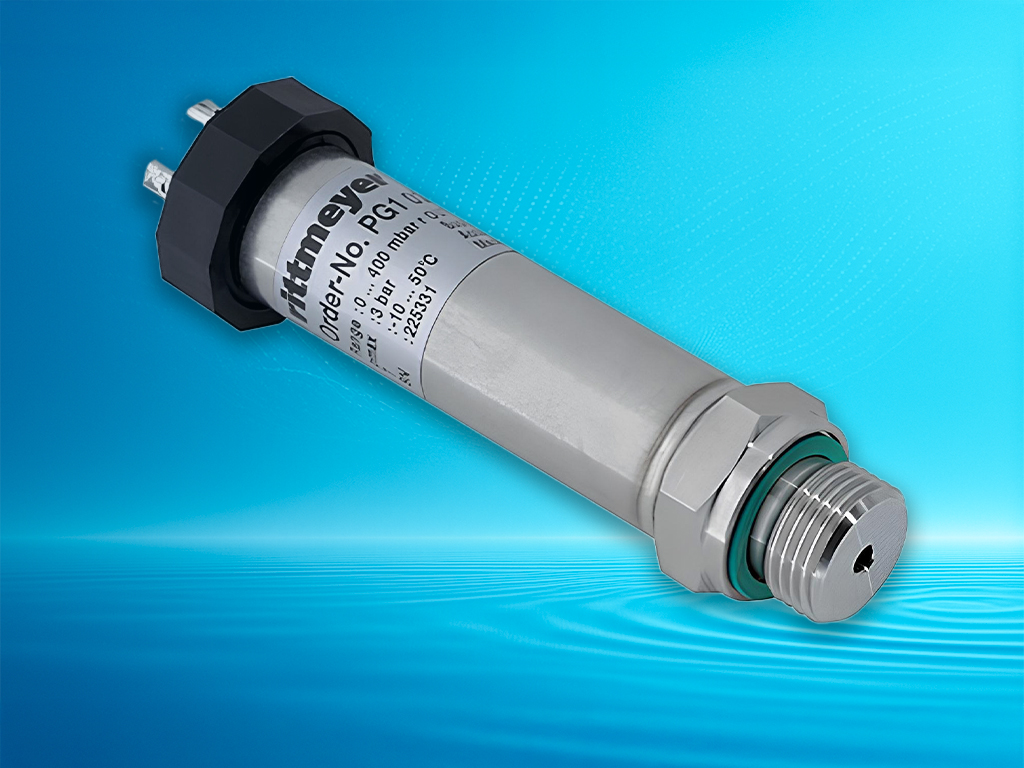

MPG pressure transmitter

• Accuracy 0.1% FS
• 2 wire technique
• Programmable
• Output signal 4...20 mA

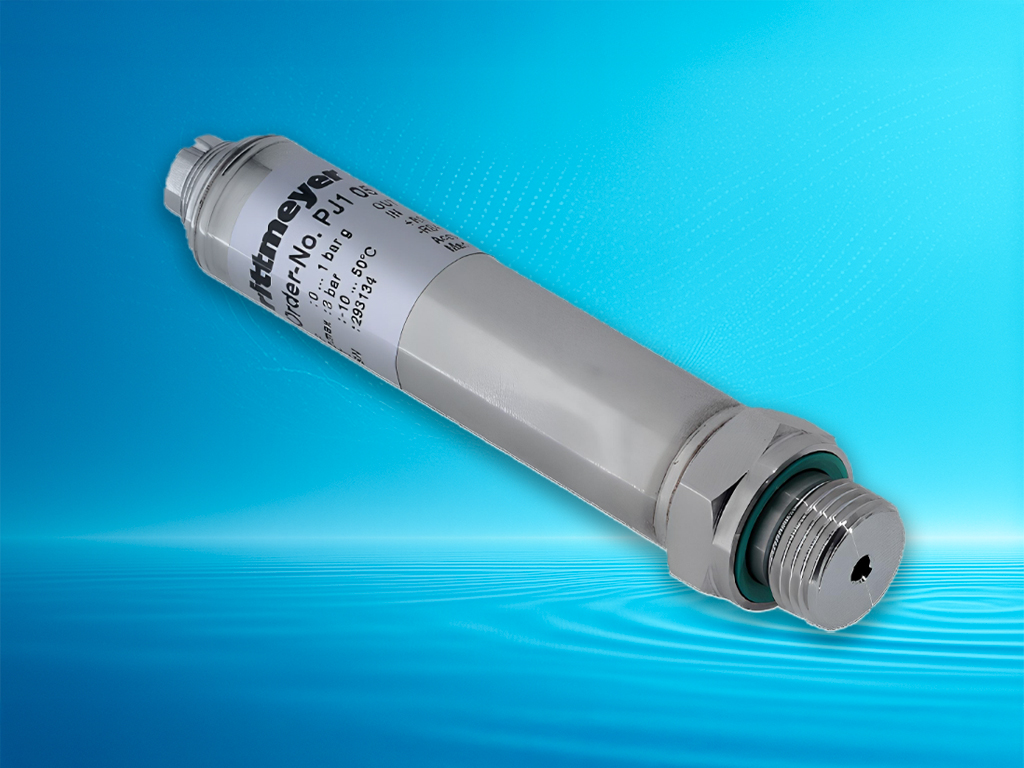

MPJ pressure transmitter

• Accuracy 0.1% FS (optional: 0.05% FS)
• 5/6 wire technique
• Programmable
• Output signal 4...20 mA and digital (Modbus RTU)
